Argox

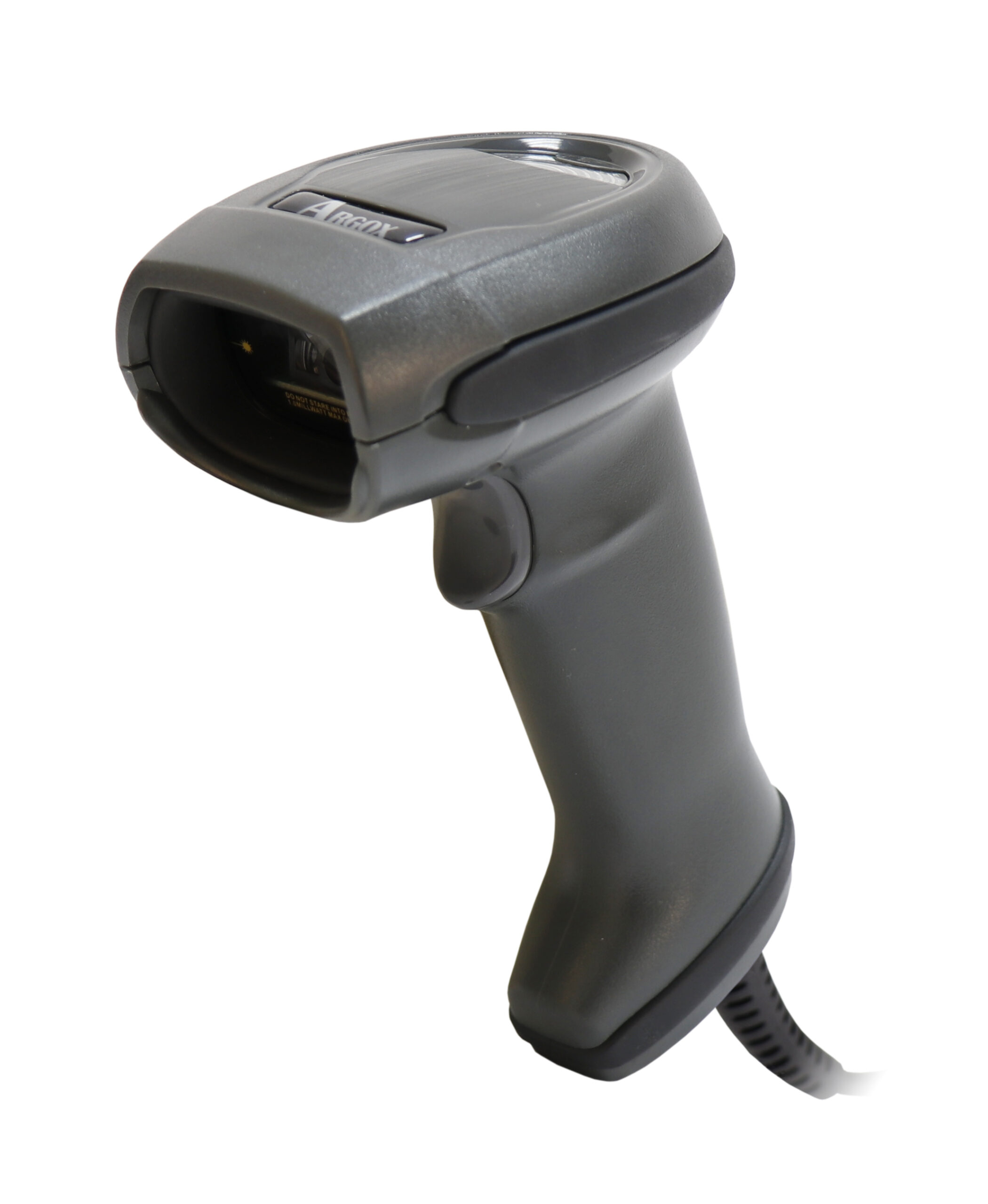

Argox AS-8060 Linear Imager

AS-8060, high C/P value 1D CCD scanner fulfill customers’ demands

Add to Enquiry
Download PDF
Specification
Scanner Specification
Light Source RED LED 620nm~630nm
Depth of Field 25~100mm (Code39 , 4mil, PCS90%) 15~330mm (EAN, 13mil, PCS90%)
Resolution 3mil (0.0762mm)
Print Contrast Ratio (minimum) 20%
Decode Capability UPC-A, UPC-E, EAN-13, EAN-8, Codabar, Code 39 Full ASCII, China Post, Plessey, MSI, Code 93, Code 128, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, Code 11, ISBN, ISSN, Code32(Italian pharmcode), Code39 extended, GS1-128 and ITF-14, SISAS, GS1 Ominidirectional, GS1 Limited, Aviation25, RSS14
 Communication Interface USB-HID, USB-Virtual COM
Scan Indicators LED, Beeper
 Input Voltage DC5V±1%
Operating Temperature -20°C to 50°C
 Storage -40°C to 70°C
Humidity 5% to 95%(Non-condensing)
Ambient Light 70,000 Lux
 Drop Resistance Withstands multiple times 1.5meters drops to concrete
Operation Mode Trigger mode/Continuous scanning/Auto flashing/Auto sensing mode
Sealing IP42
Cable Length 2m

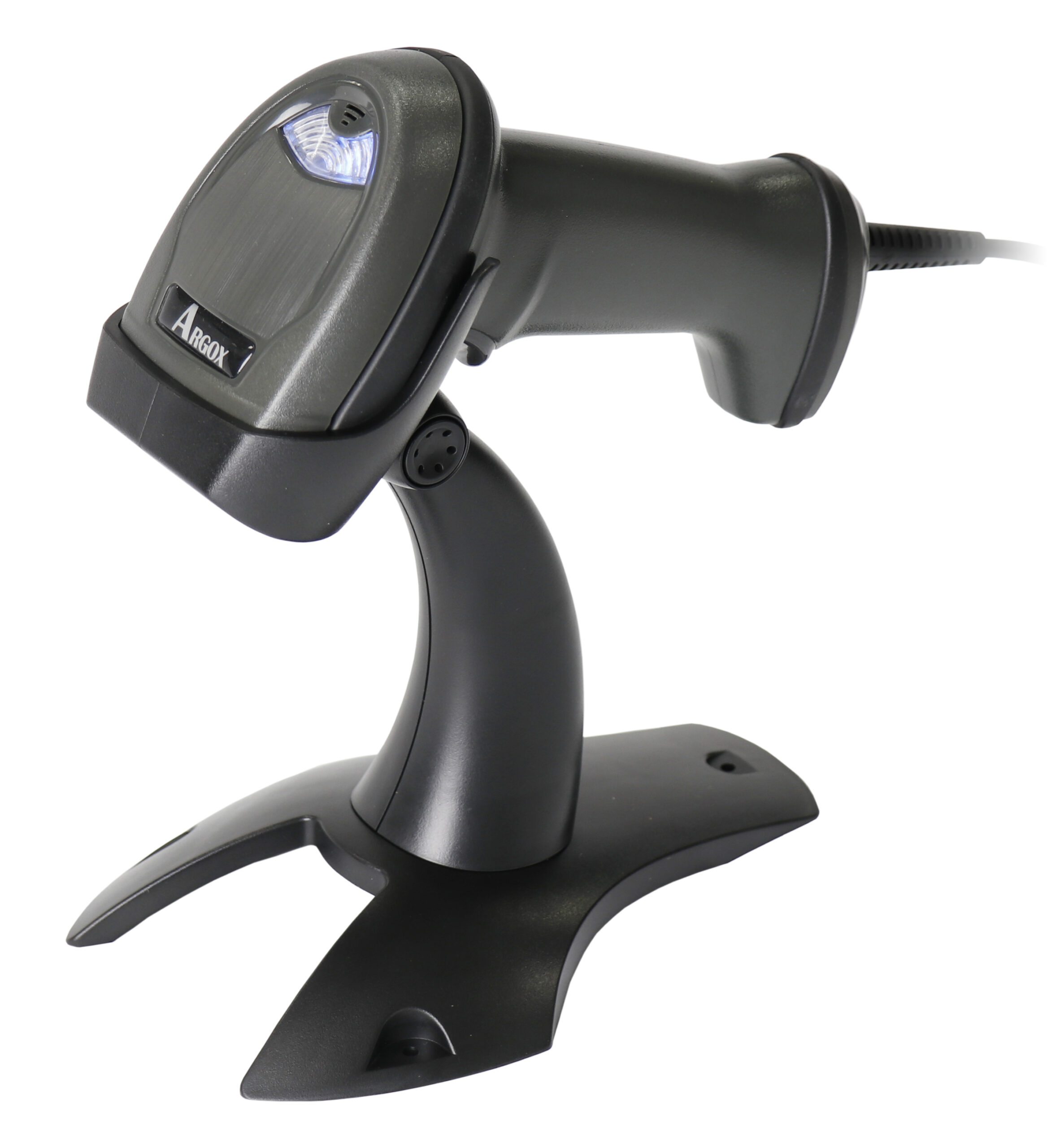

 Scanner Stand Standard
