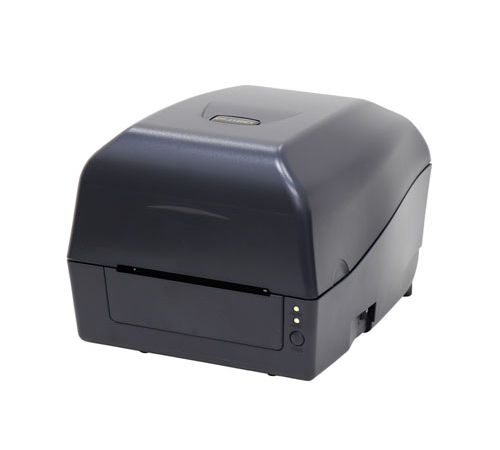

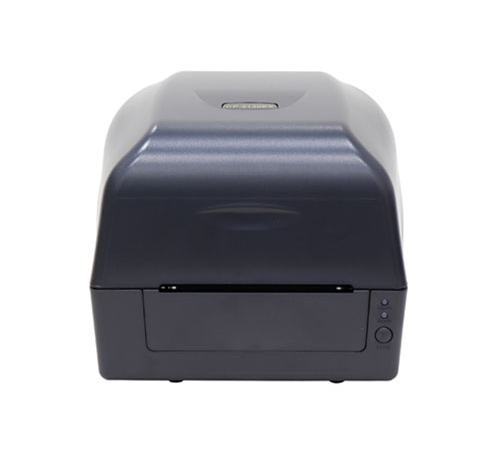

Argox CX Series Desktop Printer

  • Shell Suit design
  • Easy to load media
  • Durable life
  • Performance enhances
  • 4 different models in the series
Add to Enquiry
Download PDF
Specification
Physical Characteristics
Printer Dimensions W 226mm x H 188mm x D 276mm
Printer Weight 4.6 lbs (2.1 kg)
Print Spec
Printing Method  Direct Thermal & Thermal Transfer
Printing Resolution CX-2040, CX-2140: 203 dpi (8 dots/mm)
CX-3040, CX-3140: 300 dpi (12 dots/mm)
Printing Speed CX-2040, CX-2140: Max. 6 ips
CX-3040, CX-3140: Max. 4 ips
Printing Length CX-2040, CX-2140: Max. 100” (2540 mm)
CX-3040, CX-3140: Max. 50” (1270 mm)
Printing Width CX-2040, CX-2140: Max. 4.25” (108 mm)
CX-3040, CX-3140: Max. 4.16” (105.7 mm)
Memory 32 MB SDRAM, 16MB Flash ROM
CPU Type 32-bit RISC microprocessor
Consumables Spec
Sensors Reflective sensor x 1 (movable) & Transmissive sensor x 1 (Center fixed)
Media Type Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper
Media Max. width: 4.65” (118mm). Min. width: 0.8” (20mm). Thickness: 0.0024”~0.008” (0.06mm~0.2mm)
Max. roll capacity (OD): 5″(127 mm) Core size 1”(25.4mm)
Max. roll capacity (OD): 4.5″(114.3 mm) Core size 0.5”(12.7mm)
Max. roll capacity (OD): 4.7″(120 mm) Core size 1.5”(38.1mm)
Ribbon Ribbon width: 1” ~4.33” (25.4mm~110mm), Ribbon length: Max. 300m.
Core size ID: 1” (25.4mm), optional: 0.5” (12.7mm), Core width: 2.6” (67mm)
Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)
Fonts & Symbologies
Fonts Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm)
Internal fonts are expandable up to 24×24 4 direction 0° ~ 270° rotation
Soft fonts are downloadable Ability to print any Windows True Type font easily. Support scalable font
1D Barcodes UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked
2D Barcodes QR Code, PDF417 (including MicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode
Graphics PPLA: PCX, BMP, IMG, HEX and GDI format files PPLB: PCX, BMP, Binary Raster, and GDI PPLZ: GRF, Hex and GDI
Emulation PPLA, PPLB, PPLZ
Interface Characteristics and Integration
Operation Interface LED Indicator x 2, Button (Feed) x 1
Communication Interface CX-2040, CX3040: USB device
CX-2140, CX3140: Ethernet, USB device, RS-232, USB host
Drivers Windows Driver for Windows Vista/Win7/Win8/Win10, LINUX Driver, macOS Driver, Raspberry Pi Driver
Software BarTender, Printer Tool
Database Link Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
Operating & Environment Characteristics
Power Source Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A
Operation Environment

Operation Temperature: 40°F~100°F (4°C~38°C), 10% ~ 90% non-condensing

Storage Temperature: -4°F~122°F (-20°C~50°C)
Agency Listing CE, FCC, cULus, RoHS, BIS, BSMI, KC
Optional Items
  • Guillotine Cutter
  • Rotary Cutter
  • Peeler
  • External media stand

Description

Shell Suit design

Interface roof feature can avoid interface from water spill damage and keep machine close to wall, reduce operating space.

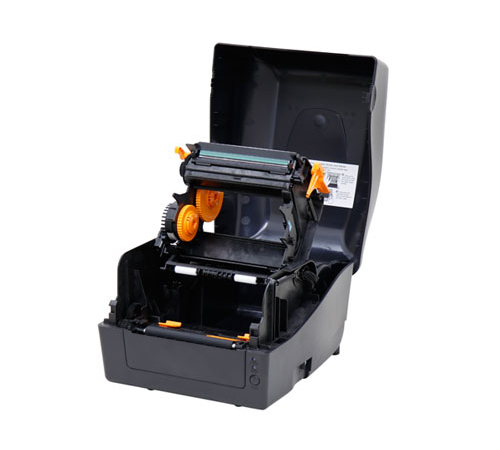

Easy to load media

Large loading space to help media and ribbon installation very easily.

Durable life

Inherited the turtle spirit, integrated structure makes CX Series solid and robust.

Performance enhances

Print speed is faster 20% than old CP series, expanded SDRAM and Flash ROM can store more fonts, forms, graphics.

4 different models in the series

The CX series has 4 different models, as CX-2040, CX-2140, CX-3040 and CX-3140.
