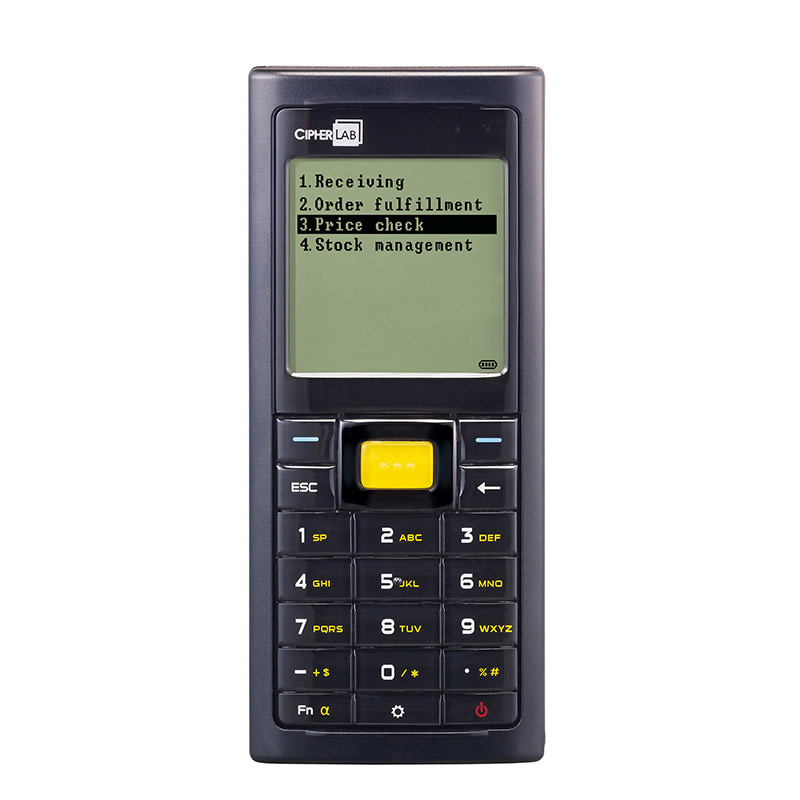

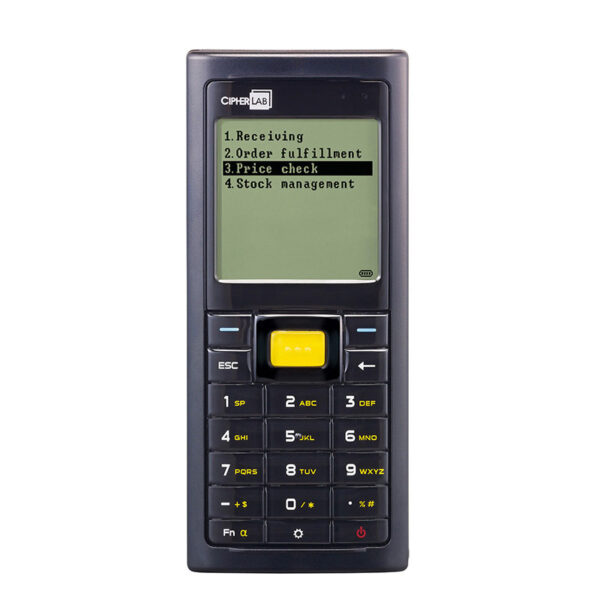

Cipherlab CPT-8200 Data Collector

CipherLab maximizes retail workflow and productivity with the introduction of the all new 8200 series. This highly versatile mobile computer features a lightweight, ergonomic form factor and low power consumption to help you carry out day-to-day data collection routines with unique application requirements. From data input versatility to memory capacity expansion and wireless communication, the 8200 series puts the right information in the right hands – guaranteed.

As an ideal choice for healthcare applications, the 8200 series is perfect for capturing and processing important data in hospitals, pharmacies and nursing homes, from point-of-care patient identification to record management with seamless accuracy.

Download PDF
Specification
Performance
CPU 32-bit
Memory 8 MB Flash / 4 MB or 8 MB SRAM
Expansion micro SD slot with SDHC support
Operating power Rechargeable 3.7V 1200 mAh Li-ion battery
Working hours 124 hours
Data retention 25 days
Alert Dual-color LEDs (red/green, blue/green), vibrator, voice
Physical characteristics
Display 2.1″ 160×160 pixels, white LED backlight
Keypad 24 keys, white LED backlight
Size (LxWxH) 136 x 58 x 25mm (Linear imager) / 136 x 58 x 32 mm (Laser/2D )
Weight 150g / 5.3 oz.
User environment
Operating temperature -10° to 55° C / 14° to 131° F
Storage temperature -20° to 70° C / -4° to 158° F
Humidity (non-condensed) Storage 5% to 95% / Operating 10% to 90%
Impact resistance Multiple 1.2m/4 ft. drop onto concrete, 5 drops on each side / IP54
Electrostatic discharge ± 15kV air discharge / ± 8kV direct discharge
EMC regulation FCC, IC, CE, C-tick, CCC, BSMI
