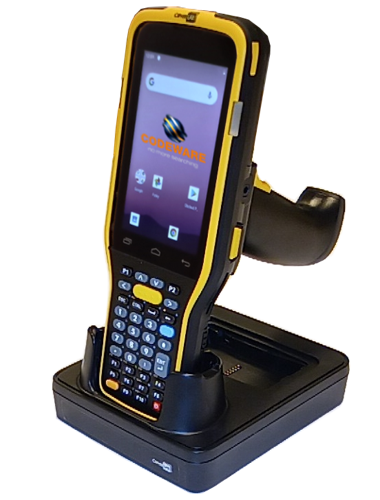

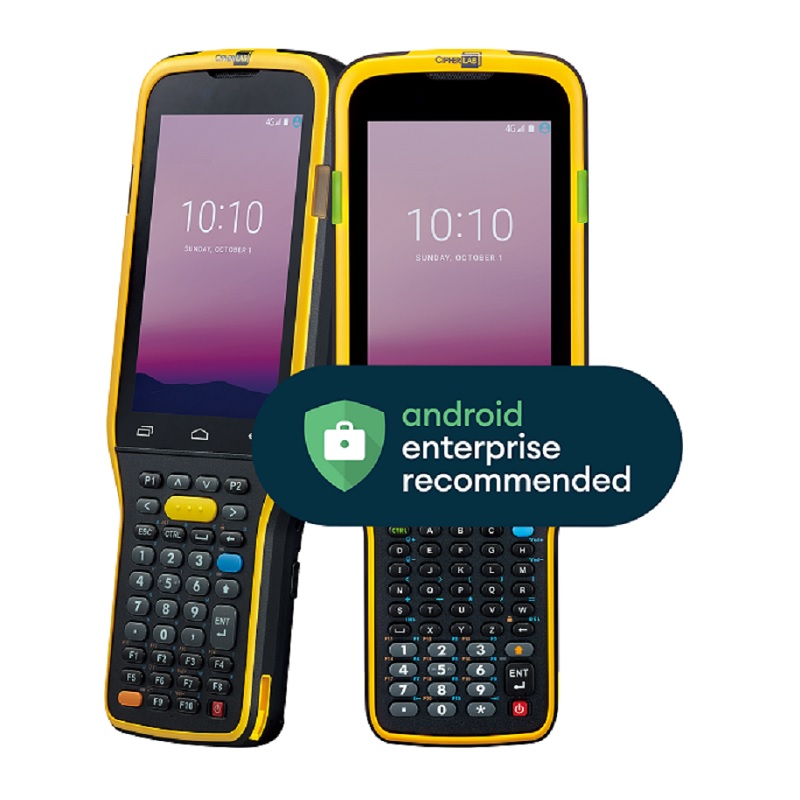

Cipherlab RK95 Android Mobile Computer

CipherLab’s RK95 is a powerful handheld terminal that steps up the data collection game in the warehouse environments. Running on the latest Android operating system and today’s most powerful processor, the RK95 also comes with Google enterprise-oriented certifications to ensure the device’s productivity stays efficient for now and the future. Crafted in excellent reading capability, wireless connection, industrial ruggedness, user interface and power consumption, the RK95 is surely an investment that is smart and cost effective for your business.

Add to Enquiry
Download PDF
Specification
Performance
Operating system Android 9 (GMS, AER certified with one later version upgradeable capability)
CPU Octa-core over 2.2 GHz
Memory 64GB Flash / 4GB RAM
Expansion Micro SD Slot With SDHC (up to 32 GB) and SDXC (up to 2TB) Support
SIM/SAM 1 SIM with dust cover
Operating power Standard: Rechargeable 3.7V, 3000 mAh / 6000 mAh Li-ion Battery
Cold Storage: Rechargeable 3.7V 5500 mAh Li-ion Battery
Working hours Standard: Min. 8 working hours (3000 mAh), Min. 12 working hours (6000 mAh)
Cold Storage: Min. 5 working hours at -30oC
Alert LED indicatores for RF, charging status, scanning status (2 circular LED at front and 2 rectangle LED at sides) / Vibrator / Speaker
Interface supported USB 2.0 with OTG
Wireless communication
WLAN IEEE 802.11 a / b / g / n / ac / e / d / h / i / r / k / v / w , IPv4, IPv6, 2×2 MU-MIMO
WLAN security WEP, WPA (PSK, TKIP), WPA2 (AES, PSK), WPA-1X (TKIP,EAP-TLS, PEAP), WPA2-1X (AES, EAP-TLS, PEAP) , 802.1x (EAP-TLS, PEAP) AES-CCMP, WPI-SMS4, WPS2.0, WAPI, EAP-TTLS (PAP, MSCHAP, MSCHAPv2), PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP, EAP-PWD
WPAN Class 2 Bluetooth® V5.0 with BR/EDR and Low Energy (BLE) Support
Bluetooth® profile GAP, SDP , HSP, SPP, GOEP, OPP, HFP, PAN, A2DP, AVRCP, GAVDP, HID , PBAP
Data capture
Barcode scanning Standard: Laser / 2D Imager/ Mid-Range 2D Imager / Extended-Range 2D imager
Cold Storage: 2D Imager/ Mid-Range 2D Imager / Extended-Range 2D imager
NFC Supports ISO14443A, ISO14443B, ISO15693, Felica (Peer-to-Peer, Card Reader, Card Emulation)
Camera (Optional) Autofocus 13 Megapixels with LED flflash
Physical characteristics
Display 4.3” WVGA color display, Capacity Touch supports bare / wet / gloved fifinger and stylus inputs, Corning Gorilla Glass
Interactive Sensor Light sensor, Proximity sensor, Motion sensor, E-compass, Gyroscope, Temperature sensor for Cold Storage
Keypad 28-Key Numeric, 38-Key Numeric/Function keypads, 52-Key Alphanumeric keypads, Terminal Emulation keypads (TN5250, TN3270 and VT) ,with LED backlight
Voice and Audio

PTT voice ; Speaker, Microphones with noise reduction and echo cancellation, Bluetooth® headset
Size (LxWxH) 216 mm x 80 mm x 30 mm
Weight Standard: 400 g (3000 mAh) / 445 g (6000 mAh), with 2D imager / 435 g (3000 mAh) /480 g (6000 mAh), with Extended-Range 2D imager
Cold Storage: 485 g, with 2D imager/ 520 g, with Extended-Range 2D imager
User environment
Operating temperature Standard: -20°C to 50°C / -4°F to 122°F
Cold Storage: -30°C to 50°C /-22°F to 122°F
Storage temperature -30°C to 70°C / -22°F to 158°F
Humidity (non-condensed) Operating 5% to 95% / Storage 5% to 95%
Impact resistance IP65, 1000 tumbles at 1 m
Standard: 1.8 m / 2.4 m with Rubber Boot, multiple drops onto concrete (MIL-STD-810G), crossing operating temperature
Cold Storage: 1.5 m multiple drops onto concrete (MIL-STD-810G), crossing operating temperature down to -30oC
Electrostatic discharge ± 15 kV air discharge, ± 8 kV contact discharge
Regulatory compliance FCC / BC / CA65 / SRRC / CCC / NCC / BSMI / CE / WEEE / RoHS / REACH / Erp / BISWPC / IC / NrCAN / RCM
