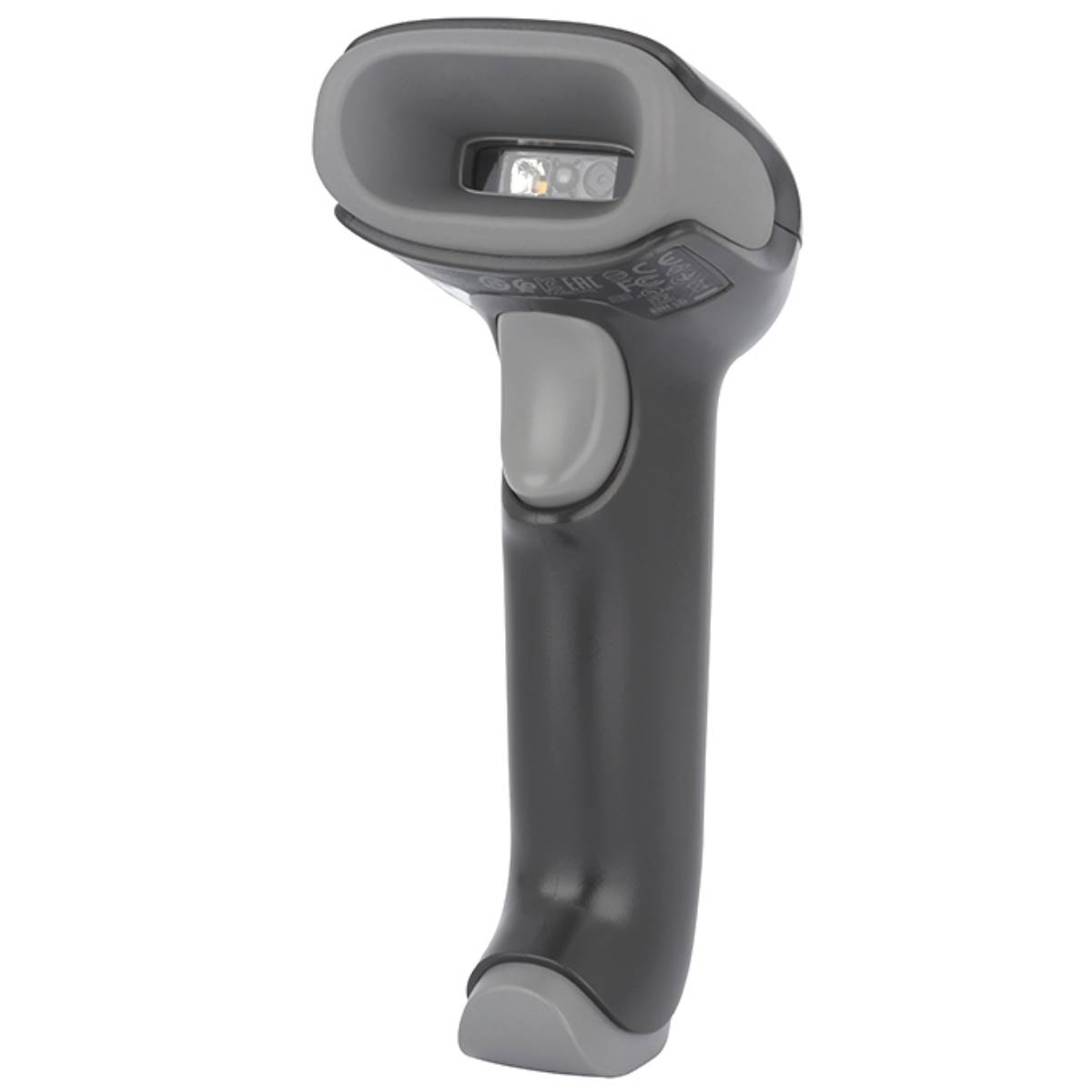

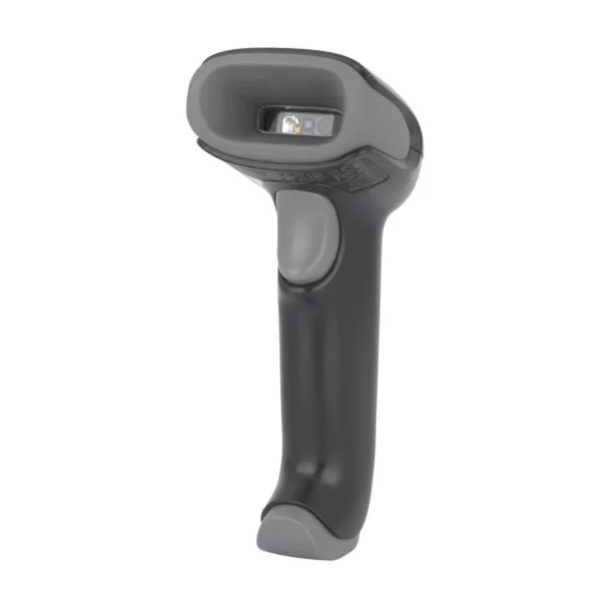

Honeywell 1472G 2D cordless Area Imager
Designed for in-store retail environments requiring a highly accurate 2D scanning solution in a durable form factor, the Voyager™ Extreme Performance (XP) 1472g cordless scanner delivers industry-leading scanning capability on traditional barcodes and digital screens – even on damaged and difficult-to-read codes.
Specification
Wireless
Radio/Range | 2.4 GHz to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v4.2 100m (300ft) line of sight with Honeywell charger/communication base |
---|---|
Power Options | Battery: 2400 mAh Li-ion minimum Number of Scans: Up to 50,000 scans per charge Expected Duration of Operation: 14 hours Expected Charge Time: 4.5 hours |
User Indicators | Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume) |
Mechanical / Electrical
Dimensions (L x W x H) | 62 mm x 173 mm x 82 mm (2.5 in x 6.8 in x 3.2 in) |
---|---|
Charger/Communication Base | (CCB01-010BT-V1N) 132 mm x 102 mm x 81 mm (5.2 in x 4.0 in x 3.2 in) |
Scanner Weight | 210 g (7.4 oz) |
Charger/Communication Base | 179 g(6.3 oz) |
Operating Power (Charging) | Charger/Communication Base: 179 g (6.3 oz) |
Standby Power | Charger/Communication Base: 0.5 W (0.1A @ 5V) |
Host System Interfaces | USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS485) |
Environmental
Operating Temperature | Scanner: • Charging: 5°C to 40°C (41°F to 104°F) • Non-Charging: 0°C to 50°C (23°F to 122°F) Charger/Communication Base: • Charging: 5°C to 40°C (41°F to 104°F) • Non-Charging: 0°C to 50°C (32°F to 122°F) |
---|---|
Storage Temperature | Scanner: • For storage up to 90 days: -20°C to 35°C (-4°F to 95°F) • For storage up to 1 year: -20°C to 20°C (-4°F to 68°F) Charger/Communication Base: • -40°C to 70°C (-40°F to 158°F) |
Electrostatic Discharge (ESD) (Scanners and Cradles) |
±8 kV indirect coupling plane, ±15 kV direct air |
Humidity | 0% to 95% relative humidity, non-condensing |
Tumble Spec | 1,000 0.5 m (1.6 ft) tumbles (impacts) |
Drop | Engineered to withstand 30 1.8 m (6 ft) drops to concrete |
Environmental Sealing | IP42 |
Light Levels | 0 to 100,000 lux (9,290 foot-candles) |
Scan Performance
Scan Pattern | Area Image (1040 x 720 pixel array) |
---|---|
Motion Tolerance | 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus |
Scan Angle | Horizontal: 39.2° nominal Vertical: 27.4° nominal |
Roll, Pitch, Skew | ±180°, ±65°, ±70° |
Barcode Types | Reads standard 1D, PDF, 2D, and DotCode symbologies Note: Decode capabilities dependent on configuration. |
Decode Ranges(DoF)
Typical Performance* | Standard Range (SR) |
---|---|
5 mil Code 39 | 20 mm – 205 mm (0.8 in – 8.1 in) |
13 mil UPC | 18 mm – 400 mm (0.7 in – 15.8 in) |
6.7 mil PDF417 | 15 mm – 185 mm (0.6 in – 7.3 in) |
10 mil DM** | 10 mm – 165 mm (0.4 in – 6.5 in) |
20 mil QR | 5 mm – 325 mm (0.2 in – 12.8 in) |
* Performance may be impacted by barcode quality and environmental conditions.
** Data Matrix (DM)
