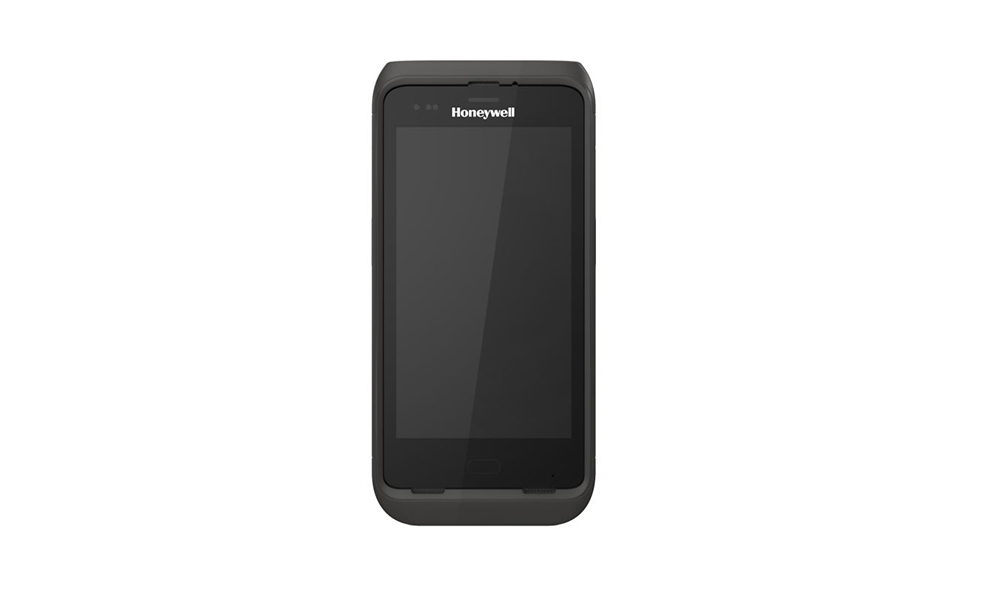

Honeywell CT45/XP (WWAN/WLAN)

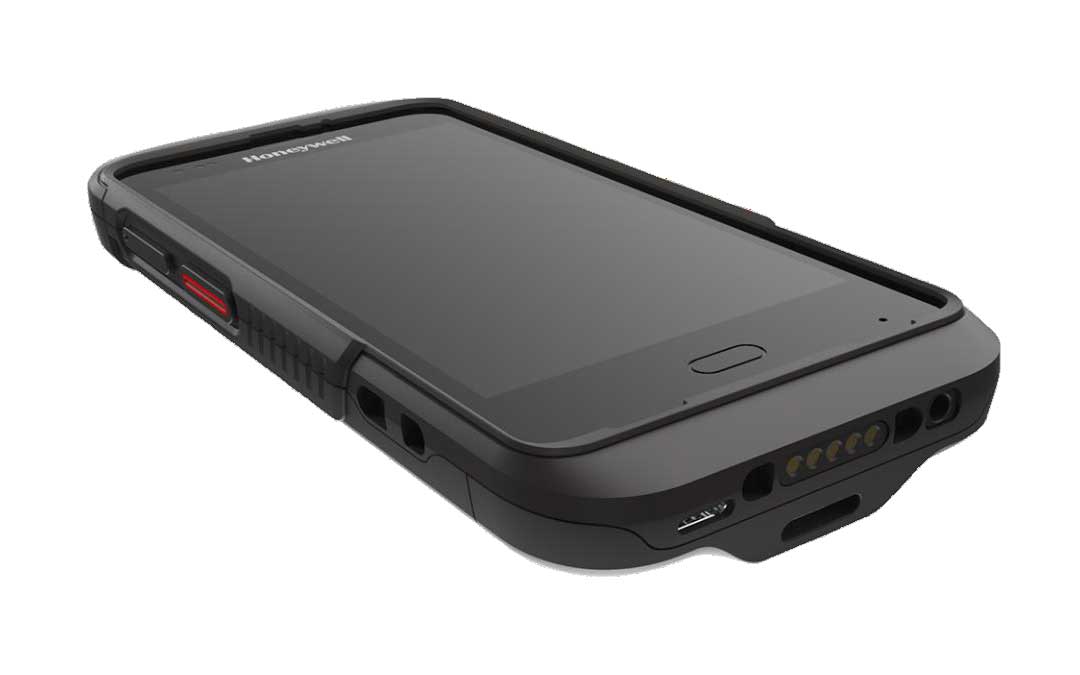

Honeywell CT45/XP (WWAN/WLAN) - Image 2

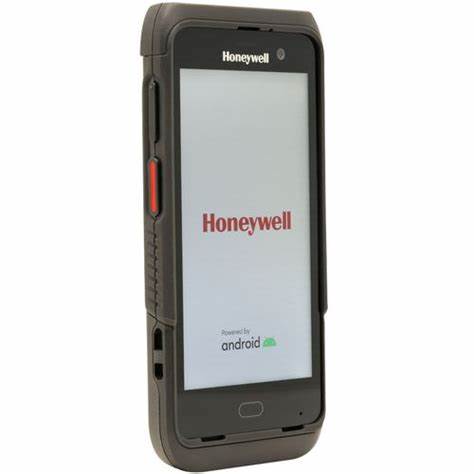

Honeywell CT45/XP (WWAN/WLAN) - Image 3

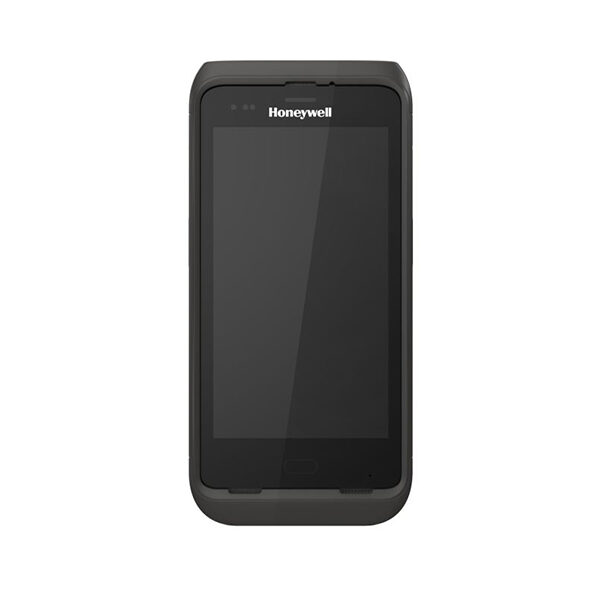

Honeywell CT45/XP (WWAN/WLAN)

The CT45 product family offers an integrated solution for mobile workforces, ensuring efficiency and productivity across diverse environments. Built on a common hardware and software Mobility Edge™ platform, powered by a robust Qualcomm processor, it guarantees support for Android versions from 11 to 15, ensuring stability and security. With Wi-Fi 6 and 4G-LTE advanced technologies, workers can access vital information seamlessly, even in densely connected areas. Its rugged design withstands harsh conditions without compromising comfort, enabling uninterrupted operation on the road or in challenging warehouses. Integrated with Honeywell Operational Intelligence, it enhances productivity for tasks like cycle counting and asset management. Featuring advanced scanning options, a high-resolution camera, and a full suite of accessories, it extends usability for various applications. The 1920x1080p full high-definition display enhances user experience, delivering crisp visuals and intuitive interaction, making the CT45 product family an indispensable tool for modern mobile workforces.

Add to Enquiry
Download PDF
Specification
MECHANICAL
Dimensions (L x W x H): 163 mm x 79 mm x 19.2 mm
Weight: 282 g (9.9oz) with battery pack
Display Size: 12.7 cm (5.0 in)
Resolution:

CT45XP: Full High Definition (1920 x 1080)

CT45: High-Definition (1280 x 720)
Backlight: LED
Touchscreen: Rugged multi-touch capacitive touch panel, optically-bonded for extra durability. Glove, stylus and rain modes supported (CT45 XP). Water droplet rejection with screen protector mode. Covered with Gorilla Glass 5 for increased resistance to drops
Hard Keys: Volume up/down key, left/right scan, power button, Push to Talk button
Soft Key: On-screen scan button, reprogrammable into an application quick-launch key.
Audio: 3.5 mm jack (WIFI version exclusive), PTT, VoIP ready, speaker, HAC-compliant.
I/O Ports: Durable, flat IO connector, USB Type C connector.
SYSTEM ARCHITECTURE
Processor: Qualcomm QCS4290/ QCM4290 octa-core, 2.0GHz
Memory:

CT45XP: 6GB DDR4x RAM, 64GB UFS Flash

CT45: 4GB DDR4x RAM, 64GB UFS Flash
Operating System: Each Android version planned from Android 11 to Android 14 and planned support for Android 15, pending feasibility
Storage Expansion: User-accessible microSD card up to 512 GB (SDXC/SDHC/ SDIO-compliant)
Rear Camera: 13-megapixel color camera
Front Camera: 8-megapixel color camera
SIM:

CT45XP: Available with configurations of eSIM and Nano SIM or configurations of 2 Nano SIMs

CT45: Available with configurations of 2 Nano SIMs
Sensors: Ambient light sensor, proximity sensor, accelerometer, gyroscope, magnetometer, barometer (Model dependent), eCompass (Model dependent), hall sensor, high gravity sensor
Battery: Li-Ion, 3.85 V, 4020 mAh; smart battery with integrated diagnostic tools
Charging Time: Quick Charge 3.0 compliant; Less than 3 hours to be fully charged
Scan Engine: Honeywell S0703 Slim Imager (1D/2D barcode symbologies); Non-imager version (optional)
Application Software: Honeywell Mobility Edge Utilities and Demos
ENVIRONMENTAL
Operating Temperature: -20°C to +50°C (-4°F to +122°F)
Storage Temperature: -30°C to +70°C (-22°F to +158°F)
Humidity: 5% to 95% (non-condensing)
Drop: Multiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H; multiple 2.4 m (8 ft) drops to concrete with protective boot at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H
Tumble: Exceeds 1,500 times at 1m (3.28 ft) per IEC 60068-2-32 specification
Environmental Sealing: Independently certified to meet IP68 and IP65 standards for moisture and particle intrusion
Electrostatic Discharge (ESD): ±8 kV direct; ±15 kV air
Thermal Shock: -30°C to +70°C
CONNECTIVITY
WWAN: WWAN Radio (ATT/VZW/SPRINT/ TMO/NA/EU)
LTE: Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 66, 71
LTE Advanced Support:  Up to 390 Mbps CAT13 LTE downlink , Up to 75 Mbps CAT5 LTE uplink
UMTS/HSPA+ (3G):  Bands 1, 2, 4, 5, 6, 8, 9, 19
GSM: 850, 900, 1800, 1900 (Quad Bands)
WLAN (Wi-Fi certified):  CT45P-X0N: IEEE 802.11 a/b/g/n/ac/ax and 2*2 MU-MIMO
CT45P-L1N, CT45-L1N, CT45-L0N: IEEE 802.11 a/b/g/n/ac
WLAN Security: OPEN, WEP, WPA/WPA2/ WPA3 (Personal and Enterprise)
All SKUs: 802.11 d/e/h/i/k/r/v/u/w/mc
Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compliant (except CT45XP WLAN)
Bluetooth: V5.1 Bluetooth and BLE
NFC: Integrated NFC reader, compliant with ISO/IEC 14443 A, ISO/IEC 14443 B, ISO/IEC 15693 (ICode), MIFARE 1K / 4K, MIFARE DESFire, Sony FeliCa, ISO/IEC 18092 (Type F)
VPN: IPSec V4/L2TP, PPTP
GPS Supported Protocols: Simultaneous GNSS Receiver Support for GPS, GLONASS, Galileo, and Beidou, Assisted GPS

Description

Reliably Connected

  • The CT45 offers always-on connectivity with updated Wi-Fi 5 technology. The CT45XP takes this connectivity further with Wi-Fi 6 technology, allowing access to essential information with low latency.
  • Field workers, delivery personnel, and others who work outside of the four walls benefit from 4G-LTE connectivity, allowing them to stay connected wherever they are.
  • The CT45 family leverages the latest processors and memory technology for high performance with guaranteed support through Android 14, with a commitment to support through Android 15, subject to feasibility.

Designed for Performance

  • The pocketable, yet rugged, dust and water-resistant design sustains 3,000 tumbles and multiple 6-foot drops to concrete, extending to 8-foot drops when equipped with the protective boot.
  • Equipped with the FlexRange Scan Engine, the CT45 family can be used in a variety of near and far scanning workflows, ensuring accurate and fast data collection from barcodes.
  • With an 8-megapixel front-facing camera, a full suite of accessories with backward compatibility with CT40 accessories, and a 1920*1080p full high-definition display, the CT45 significantly increases the user experience.

Industry Application

  • The CT45 and CT45XP are ideal retail solutions, giving your associates the ability to achieve quick inventory lookup, merchandising, click-and-collect, mobile point-of-sale and return management.
  • In T&L and DSD applications, the CT45 product family optimizes parcel pickup and delivery, LTL pick up and delivery, fleet management, proof of delivery, navigation assistance and document entry workflows.
