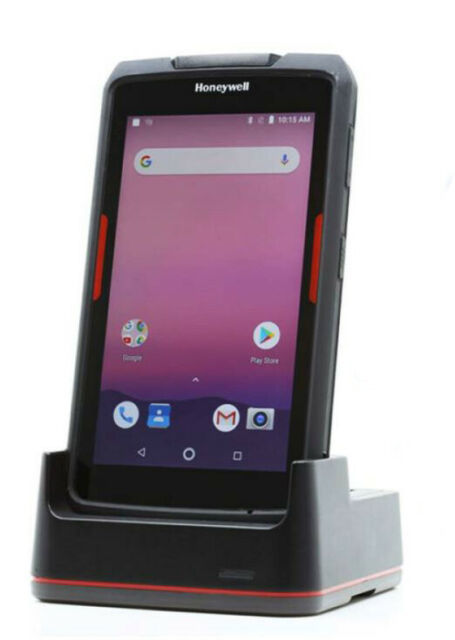

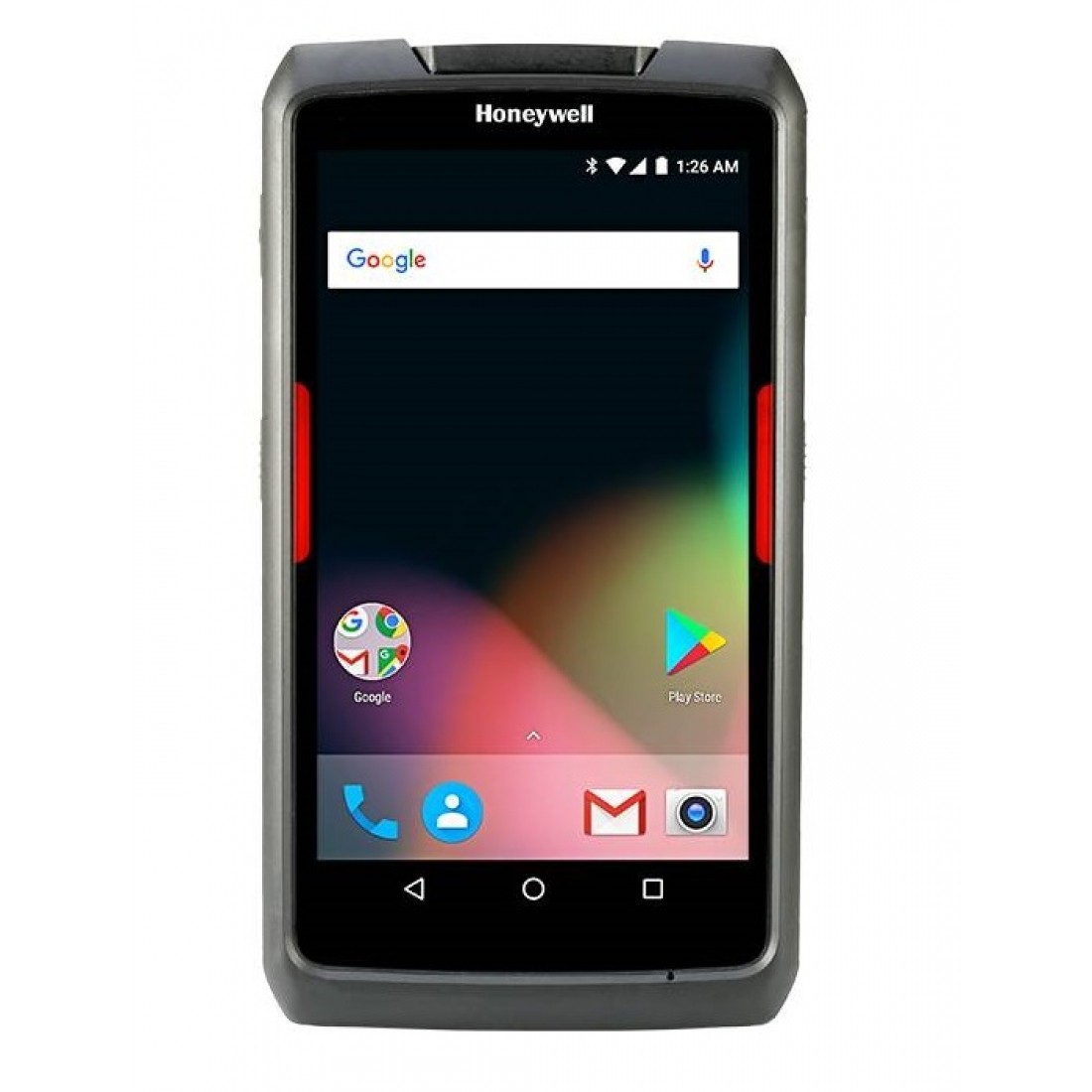

Honeywell EDA71 Android Enterprise Tablet

ScanPal EDA71 device is as comfortable and easy to use as a consumer tablet, with all of the advantages of a professional-grade product with the support and lifecycle that are critical for enterprises. Support for Android™ O and Q provides long-term availability of the security updates that are necessary for long product life.

Download PDF
Specification
Mechanical
  • Dimensions (L x W x H): 214 mm x 118 mm x 21 mm (8.4 in x 4.6 in x 0.83 in)
  • Weight : 550 g (1.21 lb) with standard battery pack
                     640 g (1.41 lb) with extended battery pack
Enviromental
Operating Temperature -10°C to 50°C (-14°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 10% to 90% relative humidity (non-condensing)
Drop 1.2 m (4 ft) to concrete at room temp (10°C to 50°C) per MIL-STD 810G
Tumble Exceeds 200 times at 0.5 m (1.64 ft) per IEC 60068-2-32 specification
ESD ±12 kV Air and ±8 kV Direct
Environmental Sealing IP64 (IEC 60529)
System Architecture
Processor 1.8 GHz Qualcomm® SDM450 8-core
Operating System Android 10
Memory 2/4 GB RAM, 32/64 GB Flash
Display 7-inch high definition (1280 x 720) bright color LCD with backlight, outdoor viewable, optically bonded to touch panel
Touch Panel Rugged, multi-touch capacitive touch panel, optically bonded for extra durability and better sunlight viewability.
Automatic detection and configuration utilizing mutual and self-capacitance modes for water rejection and use
Keypad On-screen keypad, side scan triggers, volume up/down, power button
Audio Built-in speaker, Bluetooth wireless headset support
I/O Ports eHomebase: 3 x USB host, 1 x USB client, Ethernet, spare battery charger
USB Vehicle Dock: 1 x USB host
Camera 13-megapixel color camera with autofocus
Sensors Ambient light sensor, proximity sensor, accelerometer
Storage Expansion User-accessible microSD card up to 32 GB SDHC, and up to 128 GB SDXC
Battery Li-ion, 3.8 V, 4000 mAh and 8850 mAh with integrated battery diagnostics
Hours of Operation 8+ hours
Scanning 1D/2D imager options: N3601 (standard) or N6703 (enhanced)
Application Software Honeywell power tools and demos, Honeywell SDKs for Android
Warranty One-year factory warranty
Wireless Connectivity
WWAN GSM & EDGE: Band2/Band3/Band5/ Band8 WCDMA: Band1/Band2/Band4/Band5/ Band8/Band9/Band19 CDMA1x&EVDO: BC0/BC1/BC6 FDD-LTE: Band1/Band2/Band3/Band4/ Band5/Band7/Band8/Band9/Band12/ Band13/Band17/Band19/Band20/ Band26/Band28/Band30 TDD-LTE: Band38/Band39/Band40/ Band41
WLAN IEEE 802.11 a/b/g/n/ac; 2×2 MIMO Wi-Fi certified
Additional WLAN Features 802.11 d/e/h/i/ k/r/u/w (mc with Android P)
WLAN Security OPEN, WEP, WPA/WPA2 (personal and enterprise)
Supported EAP TLS, PEAP, TTLS, PWD, FAST, LEAP
Bluetooth Class 2 V4.2 Bluetooth
Bluetooth Profiles HFP, PBAP, A2DP, AVRCP, OPP only
NFC Integrated Near Field Communication
VoIP Supported
VPN IPSec V4/L2TP, PPTP
GPS Supported Protocols GNSS receiver for BeiDou, GPS, and GLONASS
