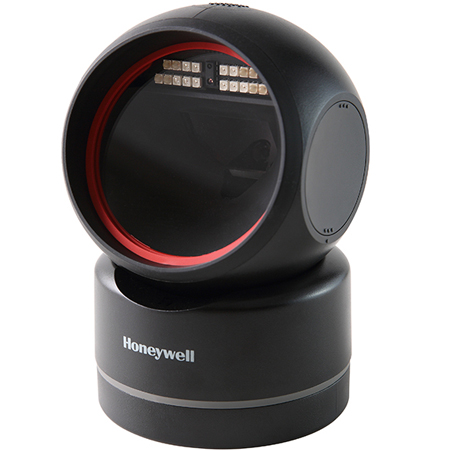

Honeywell HF680 Area Imager

Honeywell HF680 Area Imager

HF680 features Hybrid Imaging Technology, making it compatible with various LCD and OLED smart-phone screens and paper-based product barcodes. Frequent switching of scanning modes by the user is not required, significantly boosting the decoding range and improving efficiency.
HF680 can scan barcodes on mainstream LCD screens (with brightness level ranges of 10% to 100%) and OLED screens. It can also scan barcodes on paper with a print contrast of at least 20%, as well as barcodes that are highly dense, smudged, or contain complete information despite damage. This product applies to various workplaces, such as manufacturing facilities, medical treatment and healthcare facilities, and retail POSs.

Add to Enquiry
Download PDF
Specification
Mechanical / Electrical
Dimensions (L x W x H) 85 mm x 88mm x 139 mm
Weight 278 +/-10g
Input Voltage 5 VDC ±0.5V
Working 2.0 W (400 mA @ 5V)
Standby Power 0.85 W (170 mA @ 5V)
Host System Interfaces SB, RS-232
Environmental
Operating Temperature -10°C to 40°C (14°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 0% to 95%RH, no condensation
Drop Designed to withstand 1 m drops
Illuminance 0-100,000 Lux
Scan Performance
DPI 1280 x 800 pixel
Motion tolerance Up to 2.5 m/s for 13 mil UPC at optimal focus
Scan Angle Horizontal: 47°; Vertical: 30°
Print Contrast 20% minimum reflectance difference
Pitch, Skew +/-60°, +/-70°
Decode Capability Reads standard 1D, PDF, 2D Symbologie
Note: Decode capabilities dependent on kit configuration.
Warranty 3-year factory warranty
