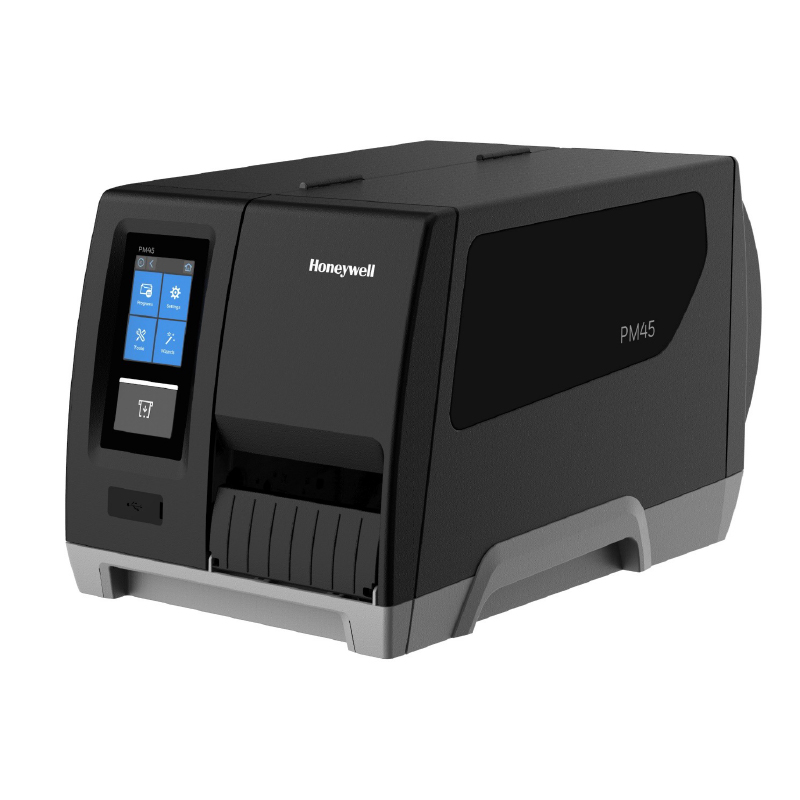

Honeywell PM45 Industrial Printer
Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer’s track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.
Specification
Printer Specification
| Standard | 512 MB Flash memory, 256 MB SDRAM, Multi-GB USB memory device (FAT16/FAT22) |
| User Partitioning | 256MB |
| User Interface | Full Touch UI, Icon UI |
| User Interface Language | On Full Touch LCD and Web Interface: English, Russian, German, French, Portuguese, Spanish, Italian, Korean, Thai, Japanese, Simplified and Traditional Chinese |
| AC Voltage | 100 to 240V AC, 50 to 60 Hz |
| Power Consumption | Standby 9.6W; Peak 270W (24V), Peak 145W (33V) |
|
Temperature |
Ambient Operating Temperature: +5°C to +40°C (+41°F to +104°F) Storage Temperature: -20°C to +70°C (-4°F to +152°F) Operating Humidity: 20 to 85% non-condensing Storage Humidity: 5 to 90% non-condensing |
| Regulatory Approvals | RoHS Compliant, CE (EN55032 Class B*), FCC Class B*, Energy Star 3.0 Qualified For more countries compliant, please contact your local sales office |
Physical Characteristics
| PM45 | L x H x W: 483 mm x 295mm x 284 mm (19.0 in x 11.11.6 in x 11.2 in) Weight: 13.2 kg (29.1lbs) |
|---|---|

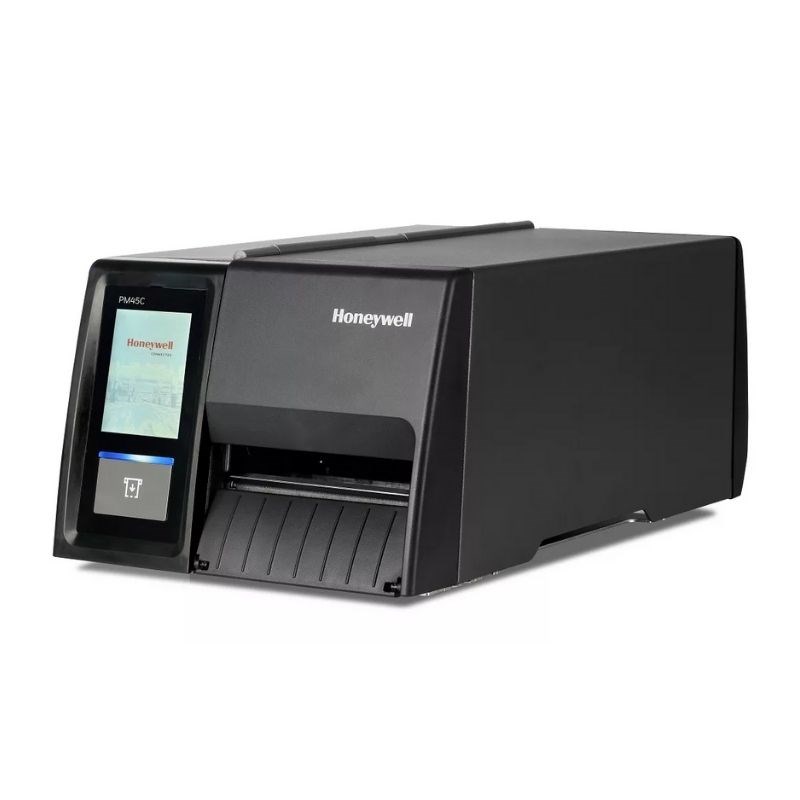

| PM45c | L x H x W: 432 mm x 181 mm x 253 mm (17.0 in x 7.1 in x 10.0 in) Weight: 12.6 kg (27.7 lbs) |
| PM45cwith Mega Door | L x H x W: 500 mm x 245 mm x 253 mm (19.7 in x 9.6 in x 10.0 in) Weight: 12.8 kg (28.0 lbs) |
Printing Characteristics
| Print Resolution | 203 dpi: 8 dots/mm 300 dpi: 11.8 dots/mm 406 dpi: 16 dots/mm 600 dpi: 23.6 dots/mm |
|---|---|
| Max. Print Speed | 203 dpi: 50-350 mm/s (2-14ips) 300 dpi: 50-300 mm/s (2-12ips) 406 dpi: 50-250 mm/s (2-10ips) 600 dpi: 50-150 mm/s (2-6ips) |
| Max. Print Width | 203 dpi: 108 mm (4.25 in) 300 dpi: 105.7 mm (4.17 in) 406 dpi: 104 (4.09 in) 600 dpi: 105.6 mm (4.16 in) |
| Max. Print Length | 203 dpi: 4.8 m (189 in) 300 dpi: 2.2m (85in) 406 dpi: 1.2 m (47.2 in) 600 dpi: 0.55m (22in) |
Media Specification
| Label Type | Labels and Tags and Linered media |
|---|---|
| Thickness | 3 mil to 10.4 mil |
| Configuration | Roll-fed or fan-fold |
| Media Sensing | Gap, Notch, Black mark, Continouos, Media low, Media end |
| Other sensing | Label Taken sensing, Ribbon Low/End sensing, Head lift sensing |
| Label Roll Max. Diameter | 152 mm (6 in) for PM45c long door models; 213 mm (8.38 in) for all other models of PM45/PM45c |
| Label Roll Core ID | 38-76 mm (1.5-3 in) |
| Media Max./Min. Width | 114/19 mm (4.5/0.75 in) |
| Ribbon Type | Wax, mid-range and resin |
| Ribbon Roll Max. Diameter | PM45: 80 mm (3.15 in), capacity of 450 m (1,476 ft) PM45c: 61 mm (2.40 in), capacity of 229 m (751 ft) |
| Ribbon Core ID | 25mm (1 in) |
Wireless Connectivity

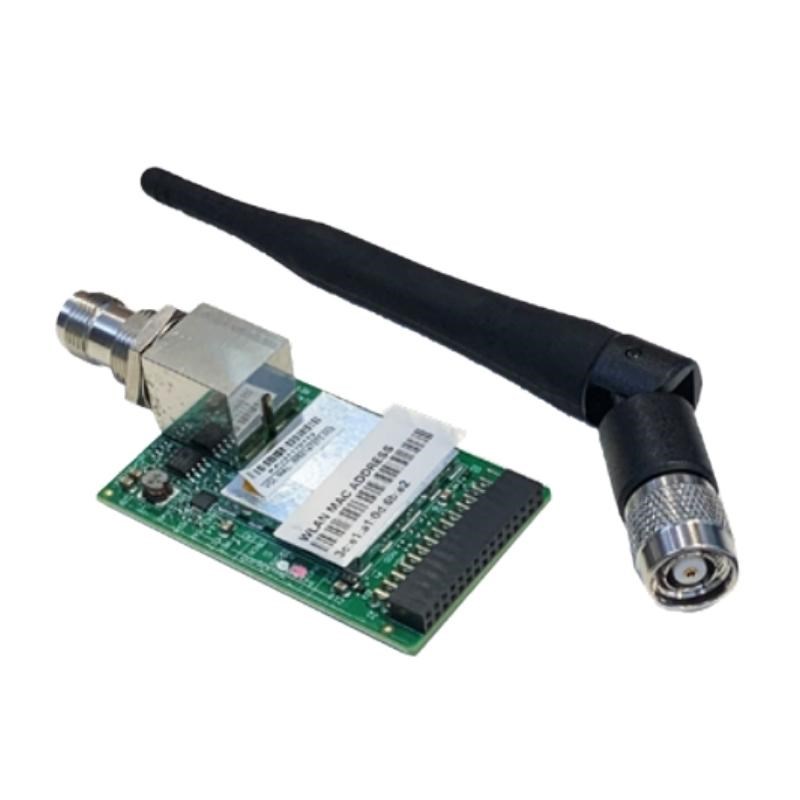

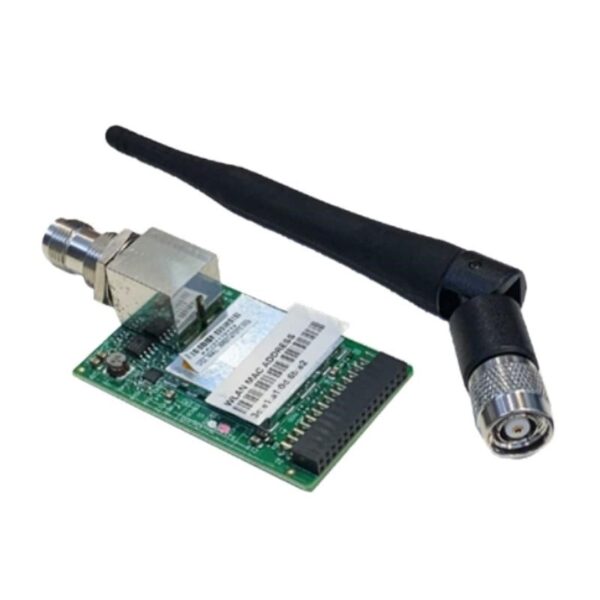

| WLAN | IEEE 802.11 a/b/g/n/ac; Wi-Fi certified, 1×1 SISO; MIMO – Main/Rx-diversity |
| Additional WLAN Features | 802.11d/e/h/i/k/r |
| Security | OPEN, WEP, WPA/WPA2 (Personal and Enterprise), Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, FAST |
| Bluetooth | V5.0 Bluetooth and BLE Supported |
| WWAN | CAT4 LTE Modem LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28 LTE TDD: B38/B39/B40/B41 UMTS: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 |
| Slot | Micro Sim Card slot x 1 |
Interfaces
| Standard | • Ethernet 10/100/1000 Mbps • USB 2.0 Host (x2 PM45, x1 PM45C) • USB 2.0 Device • RS-232, up to 115.2 KB/s |
| Optional | • Parallel Interface (IEEE 1284) • Industrial interface – eight digital in/out, four analog relays, one RS232/422/485 port • Applicator Interface – Ext Error 8-pin mini-DIN, Z-style standard DB15 port, S-style standard 14-pin Centronics, Ext Power 6-pin mini-DIN • RFID – Supports EPC Class 1 Gen2, 18000-6C. Radio configured to comply with local UHF RFID regulations including • FCC and ETSI. Contact local representative for availability in particular region |
| Supported Network Protocols | TCP/IP suite (TCP, UDP, ICMP, IGMP), LPR/ LPD, Telnet/SSH, FTP/SFTP, BOOTP, DHCP, HTTP/HTTPS, SNMPv1/2c/3, SNMP-MIBII supported – over UDP/IP (private enterprise MIB included), SMTP Supports IPv4 and IPv6 |
Software
| Printer Command Languages | Fingerprint (FP), Direct Protocol (DP), Intermec Printer Language (IPL)3, ZSim2 (ZPL-II), DPL, XML-enabled for SAP® AII and Oracle® WMS, PDF, C# |
| Applications/Drivers | InterDriver Windows® printer driver, CUPS driver for Linux, Honeywell Device Types for SAP, Honeywell label design and print package |
| Smart Printing Languages | C# for Printers: Honeywell Smart Printing Developer Resource Kit; write apps with .NET- compatible development environments |
| Configuration and Device Management Support (optional) | OpIntel -PrintSet 5 for printer configuration; sophisticated web interface for configuration, upgrades and 1:1 management; Print Set MC (Android™ and Apple® iOS) for printer configuration via Bluetooth LE only |
