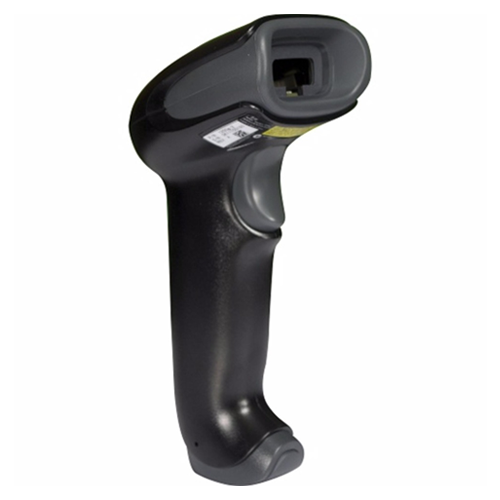

Honeywell Voyager 1250g Laser Scanner
Building on the legacy of the world-renowned Voyager™ series of scanners, Honeywell’s Voyager 1250g single-line laser scanner
provides a superior out-of-box experience and aggressive reading of linear bar codes, including larger bar codes up to 23 inches away.
Optimized for fast scanning of linear bar codes, including poorly printed and damaged codes, the Voyager 1250g allows enterprises to minimize manual data entry, leading to increased productivity and reduction in errors. The ability to read distant bar codes improves worker comfort as cashiers reach to scan items in the bottom of carts, and inventory takers scan out-of-reach products on shelves.
Specification
Mechanical
Dimensions (LxWxH) | 60 mm x 168 mm x 74 mm (2.3˝ x 6.6˝ x 2.9˝) |
---|---|
Weight | 133 g (4.7 oz) |
Electrical
Input Voltage | 5 V ± 5% |
---|---|
Operating Power | 700 mW; 140 mA (typical) @5V |
Standby Power | 425 mW; 85 mA (typical) @ 5V |
Host System Interfaces | Multi-interface; includes USB (HID Keyboard, Serial, IBM OEM), RS232 (TTL + 5V, 4 signals), Keyboard Wedge, RS-232C (± 12V), IBM RS485 supported via adapter cable |
Environmental
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
---|---|
Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
Humidity | 5% to 95% relative humidity, non-condensing |
Drop | Designed to withstand 30 drops on concrete from 1.5 m (5’) |
Environmental | IP40 |
Light Levels | 0-75,000 Lux (direct sunlight) |
Scan Performance
Scan Pattern | Single scan line |
---|---|
Scan Angle | Horizontal: 30° |
Print Contrast | 20% minimum reflectance difference |
Pitch, Skew | 60°, 60° |
Decode Capabilities | Reads standard 1D and GS1 DataBar symbologies |
