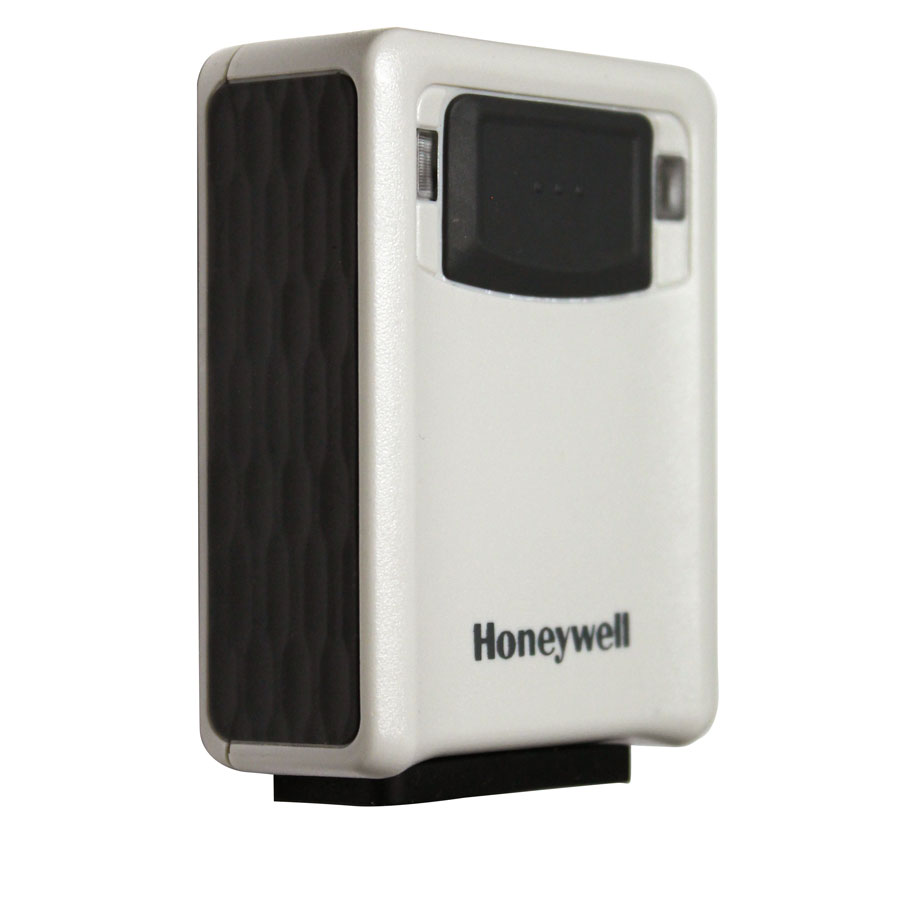

Honeywell Vuquest 3320g Area Imager

The Honeywell Vuquest™ 3320g compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner’s sleek and elegant design also blends seamlessly in retail environments.

Add to Enquiry
Download PDF
Specification
Features
  • The intelligent multi-interface design supports all popular interfaces in one device, replacing the time-consuming process of scanning programming barcodes with automatic interface detection.
  • TotalFreedom enables the loading and linking of multiple applications directly onto the scanner, eliminating the need for host system modifications while offering expanded decoding and data formatting functionality.
  • Easily scans barcodes directly from mobile device or computer screens, almost as if they were printed on paper.
  • Laser-free aiming provides an accurate scan indication, creating a customer-friendly operating environment while removing the risk of eye injury.
  • A flexible licensing solution allows current scanning needs to be met while protecting the option to upgrade scanning capabilities in the future by simply purchasing a license for the appropriate feature.
Mechanical / Electrical
Dimensions (LxWxH) 73 mm x 51 mm x 26 mm(2.9 in x 2.0 in x 1.0 in)
Weight 77 g (2.7 oz)
Termination 15-POS D-Sub connector
Input Voltage 5VDC ± 0.25V
Operating Power (Charging) Bases 2.3W (450mA @ 5V)
Host System Interfaces USB, RS-232 and Keyboard Wedge
Standby Power 0.45W (90mA @ 5V)
Environmental
Operating Temperature

-20°C to 50°C (-4°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand 1.5 m (5 ft) drops
Environmental Sealing IP53
Light Levels 0 to 100,000 lux (9,290 foot-candles)
Scan Performance
Scan Pattern Area Image (838 x 640 pixel array)
Motion Tolerance: >270 cm/s (106 in/s) at focal point
Scan Angle Horizontal: 42.4°, Vertical: 33°
Focal Point 127 mm (5 in)
Print Contrast 20% minimum reflectance difference
Pitch, Skew ±45°, ±65°
Decode Capabilities Reads standard 1D, PDF, 2D, Postal and OCR symbologies.
Note: Decode capabilities dependent on kit configuration
Warranty Two-year factory warranty
