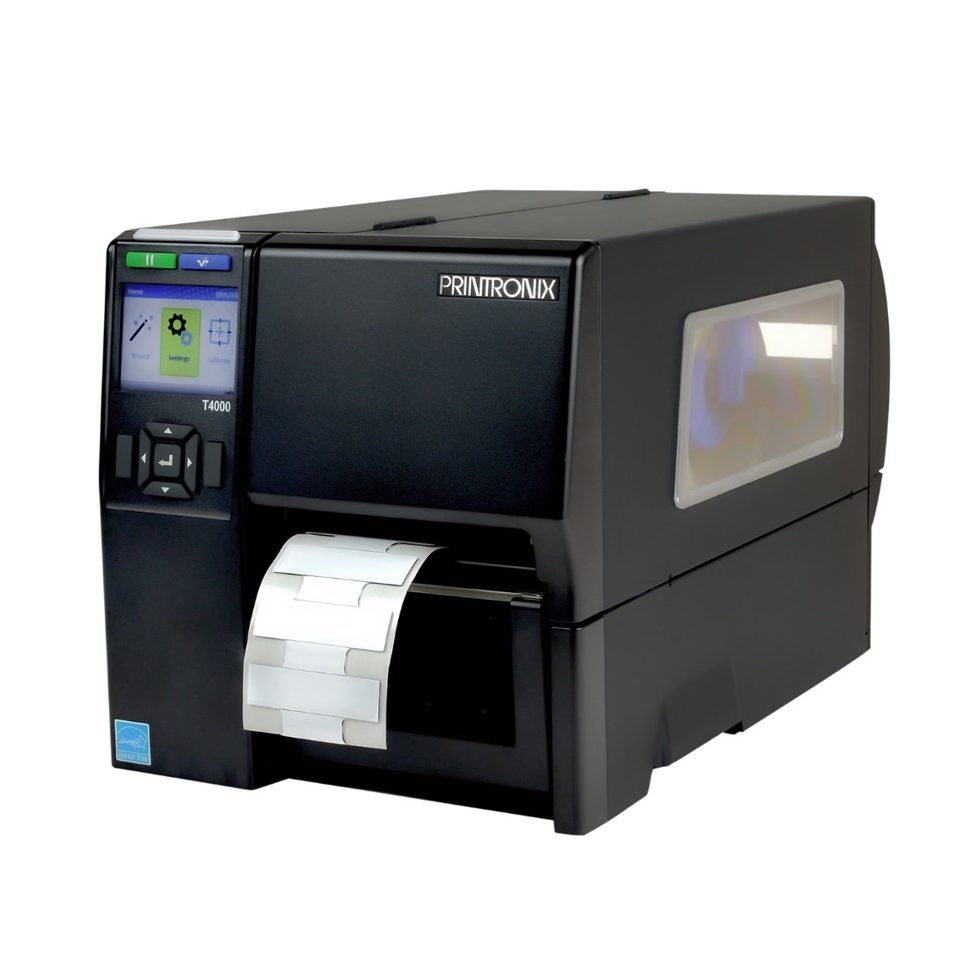

Printronix T4000 RFID Printer
The T4000 is our most compact and affordable industrial printer with the ability to print 5,000 labels a day at speeds of up to 10ips. If you’re looking to improve productivity…look no further. The T4000 includes RFID capability, Printronix System Architecture (PSA), with multiple connectivity options, remote printer management tools and automated alerts to keep your enterprise, operating at optimum efficiency and productivity.
Specification
Product Benefits
- High performance ARM Cortex-A7
- Steel Frame Enclosure
- 128MB RAM/ 128MB Flash Memory
- Bifold Media Door
- Printronix System Architecture (PSA)
- WiFi 802.11 a/b/g/n/ac (Option)
- Color 3.5in LCD nine-key control panel
- Bluetooth 4.2 (Option)
- Four-inch print width
- 203 DPI or 300 DPI
- 4-32 GB SD memory card capability
- Andale & Premium Asian Fonts (Option)
- Transfer and Direct Printing
- Ethernet 10/100 BaseT
- ENERGY STAR Certified
- Option RFID Encoder/Antenna System
Printer Specifications
| Max Print Speed | 10 IPS @ 203 DPI, 7IPS @ 300 DPI |
|---|---|
| Print Method | Transfer and Direct |
| Resolution | 203/300 DPI |
| Max. Print Width | 4.1” (104mm) |
Media Specifications
| Media Type | Roll or Fan-Fold Labels, Tags, Paper, Film, Tickets |
|---|---|
| Min. Media Width | 1” (25.4mm) |
| Max. Media Width | 4.72” (120mm) |
| Min. Media Length | Continuous 0.25”, Tear-Off / Peel-Off 1.0” |
| Max. Media Length | Up to 50” |
| Media Thickness | 0.00236” (0.06mm) to 0.011” (0.279mm) |
| Media Roll Core Diameter | 3.0” (76mm) |
| Max. Media Roll Diameter | 8.0” (203.2mm) |
| Media Sensing | Gap, Mark |
Ribbon Specification
| Ribbon Type | Wax, Wax/Resin, Resin |
|---|---|
| Min. Ribbon Width | 1.6″ (40mm) |
| Max. Ribbon Width | 4.33″ (110mm) |
| Max. Ribbon Length | 450 Meters |
| Ribbon Core Diameter | 1.0in |
Physical Characteristics
| Width | 10.40″ (264mm) |
|---|---|
| Height | 10.9″ (276mm) |
| Depth | 17.9″ (455mm) |
| Printer Weight | 22 lbs (10Kg) |
| Shipping Weight | 28 lbs (13Kg) |
Printer Language
- Printer Languages (Native / Competitor) : PGL/ZGL/TGL/IGL/STGL/DGL/IEGL/MGL/EGL
- API’s : XML
- Legacy Line Printer Emulations : VGL (Code V), P-Series / XQ, Epson FX, Serial Matrix, Proprinter
- Job Control Languages : PJL, PTX-SETUP
Communication and Connectivity/Interface
| Standard Interface I/O | Serial RS232, USB Device (Type B), USB Host (Type A) and Ethernet 10/100Base T |
|---|---|
| Optional Interface I/O | WiFi (802.11a/b/g/n/ac), (WiFi Alliance Certified) Bluetooth 4.2 |
| WiFi Security Protocol | WEP 40/128bit, WPA/WPA2 PSK, TKIP, AES CCMP EAP-TTLS, EAP-PEAP, LEAP, PEAPv1/PEAP-TLS, PEAPv0/MS-CHAPv2 |
RFID
| Radio | UHF Gen2/ ISO 18000-63 Encoder |
|---|---|
| Antenna | Fixed Position Antenna |
| Inlays/ Tags | Standard RFID Labels, On-Metal RFID Tags |
| Minimum Label/ Tag Pitch | 0.625in (15mm) |
| On-Metal Tag Thickness | Up to 1.2mm thick |
| Languages | PGL, ZGL, STGL, MGL |
| Counters | Tracks good/overstruck labels/tags |
Operating Environment
| Operating Temperature | 32 to 104°F (0 to 40°C) |
|---|---|
| Operating Humidity | 25-85% Non-Condensing |
| Storage Temperature | -40 to 140°F (-40 to +60°C) |
| Storage Humidity | 10 – 90% Non-Condensing |
Media Handling
- Standard : Continuous, Tear-Off
- Optional : Peel/Rewind (paper labels, 6ips, rewinds liner from8in roll), Cutter (thickness as per media spec, life 500,000 cuts)
(Does not support on-metal RFID labels/tags)
Regulatory Compliance
| Emissions | FCC, CE, IC, CCC, KC |
|---|---|
| Safety | cTUVus, CE, IC, EAC, SMARK, NOM, CCC, KC, BIS, BSMI |
| Environmental | RoHS, WEEE, Energy Star |
| RFID | USA, Canada, EU, China, Brazil, Taiwan, India, Korea |
| WiFi/BT | US, Canada, European Union, China |
Bar Code Symbologies
| 1D Barcodes | BC-412, Code 11, Code 39, Code 35, Code 93, Codabar, Code128 Subsets A/B/C, Industrial 2 of 5, Interleave 2 of 5, German I-2/5, EAN-8, EAN-13, UCC/ EAN-128, UPC-A, UPC-E, UPCSHIP, UPS 11, MSI, Matrix 2 of 5, PLESSEY, POSTNET, 4-state PostBar, Australian 4-state, FIM, ITF14, TELEPEN, PLANET, USPS Intelligent Mail, LOGMARS |
|---|---|
| 2D Barcodes | PDF-417, MicroPDF-417, Maxicode, DataMatrix, QR Codes, Aztec, GS1 Databar (RSS-14) |
Font, Graphic Support
| Graphic Formats | PCX, TIFF, BMP, PNG |
|---|---|
| Font Technologies | Intellifont, TrueType, Unicode |
| Standard Fonts | OCRA, OCRB, Courier, Letter Gothic, CG Times, CG Triumvirate/Bold/Condensed |
| Asian Fonts (Optional SD card) | Simplified Chinese, Japanese, Korean, Thai |
