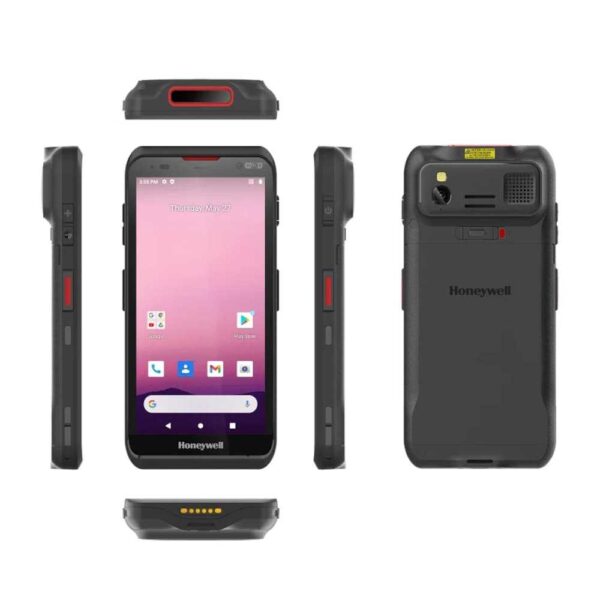

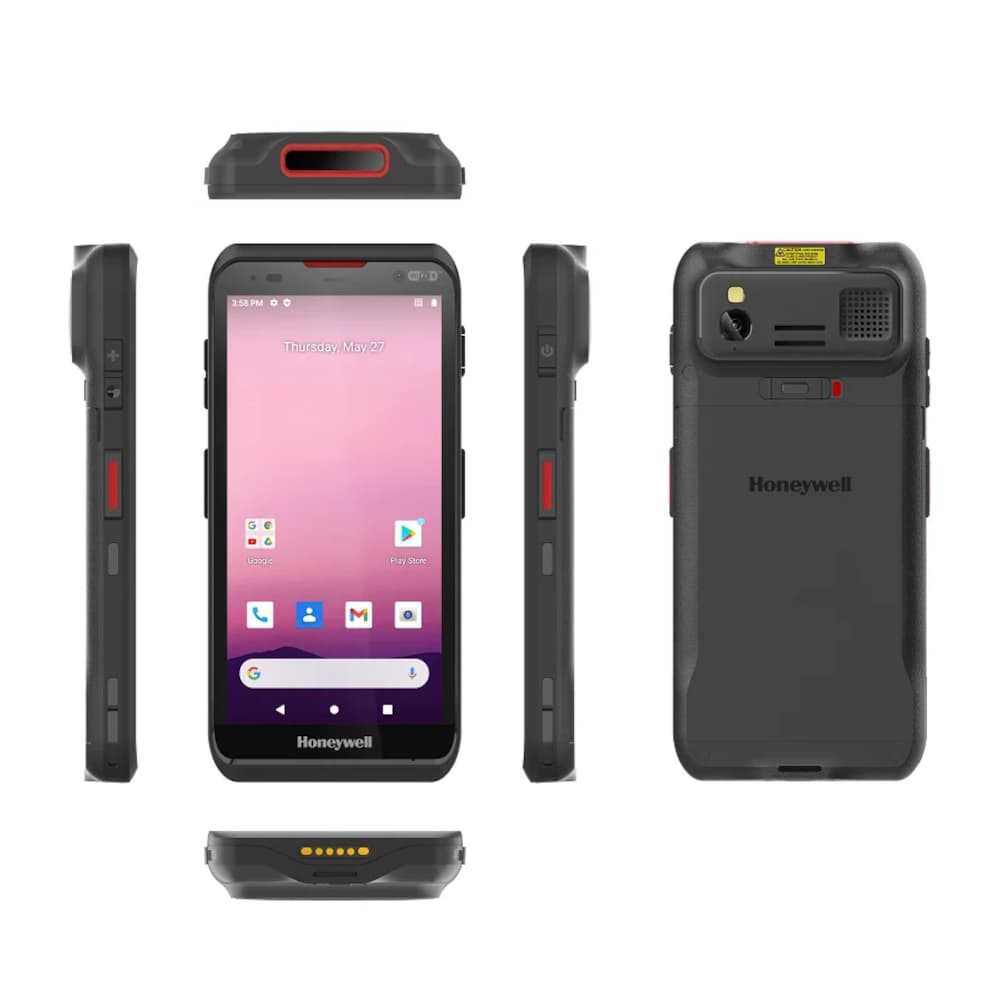

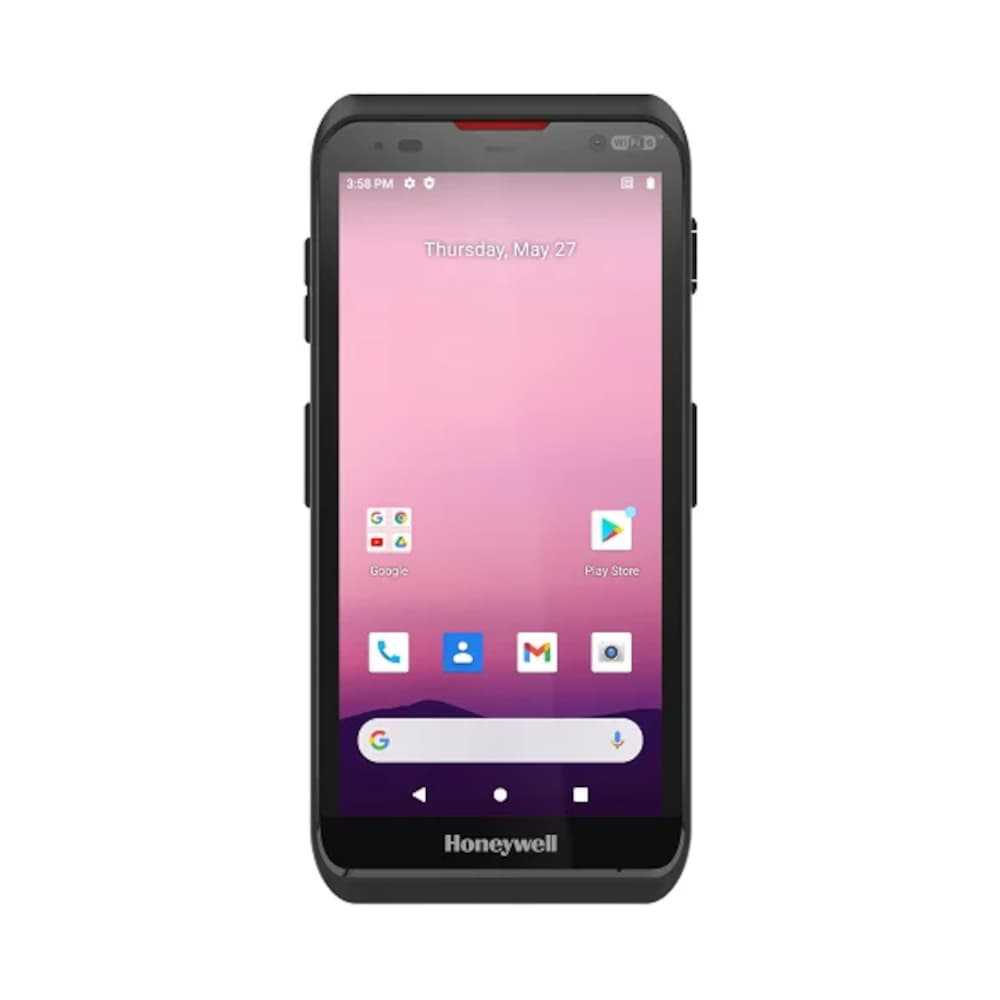

Honeywell ScanPal™ EDA56 Wi-Fi 6 Mobile Computer

The ScanPal EDA56 by Honeywell is a rugged mobile computer designed for industrial use. It features a Qualcomm Snapdragon octa-core 2.0GHz processor and robust wireless connectivity including Wi-Fi 6, NFC, and Bluetooth 5.1, offering faster and stronger network connections. The device incorporates the Honeywell S0703 scan engine for quick and accurate barcode scanning. With its rugged housing and IP67 rating, it can withstand rough usage and demanding environmental conditions. The device runs on Android 11, upgradeable to Android 13, ensuring long-term support and maintenance. It boasts a 5.5-inch Gorilla Glass touch screen and ergonomic design for user comfort. Other features include a 13-megapixel rear camera, 5-megapixel front camera, compatibility with RFID readers, and backward compatibility with ScanPal EDA52 accessories. Value-added software enhances its capabilities for various applications. Honeywell Operational Intelligence and Smart Talk provide additional features for workflow automation, issue management, and unified communications with enterprise-grade security.

Add to Enquiry
Download PDF
Specification
MECHANICAL
Dimensions (L x W x H): 159 mm x 75 mm x 14.4 mm (6.26 in x 2.95 in x 0.57 in)
Weight: 258 g
Display Size: Gorilla Glass 5, 5.5-inch
Resolution: 1440 × 720 High Definition
Backlight: LED
Touchscreen: Multi-touch capacitive (CTP), GFF
Hard Keys: 5 side keys for volume up/down, right and left scan keys and power on/off
SYSTEM ARCHITECTURE
Processor: Qualcomm Snapdragon SM6115, Quad high-performance; Kryo cores 2.0 GHz +Quad low-power; Kryo cores 1.8 GHz
Memory: 4 GBRAM/64 GB Flash; 6 GB RAM/128 GB Flash
Operating System: Android 11, and upgradeable to Android 13
Storage Expansion: MicroSD (up to 128 GB)
Rear Camera: 13-megapixel color camera
Front Camera: 5-megapixel color camera
Interface Ports: 2-pin bottom connection/6-pin bottom connection
Battery: Li-Ion, 3.8 V, 4,500 mAh, removable
Real-Time Clock (RTC): 10 min backup via super-cap
Charging Time: less than 3.5 hours
Battery Runtime: more than 12 hours
Scan Engine: Honeywell S0703 Slim Imager (1D/2D barcode symbologies); Non-imager version (optional)
ENVIRONMENTAL
Operating Temperature: -20°C to 50°C (-4°F to 122°F)
Storage Temperature: -30°C to 70°C (-22°F to 158°F)
Humidity: 5 % to 90 % (non-condensing)
Drop: Multiple 1.3m (4.3ft) per MIL-STD 810G drops to concrete at room temperature;
Multiple 1.5m (5ft) per MIL-STD 810G drops with rubber boot concrete at room temperature
Tumble: 550 times at 0.5 m (1.64 ft)
Environmental Sealing: IP67
Electrostatic Discharge (ESD): ±8 kV direct; ±15 kV air
CONNECTIVITY
WLAN (Wi-Fi certified): IEEE 802.11 a/b/g/n/ac/ax ,2*2 MU-MIMO
WLAN Security: OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise)
WLAN Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compliant
Bluetooth: V5.1 Bluetooth and BLE
NFC: Integrated Near Field Communication
ACCESSORIES
Single Charging Home Base: Charges one terminal and one replaceable battery simultaneously
Single Charging Dock: Charges one terminal
Backwards Adapter Cup: Be compatible with EDA50/51 single charging dock
Quad Bay Charging Base: Charges four terminals simultaneously
Quad Bay Battery Charger
Standard Battery Pack
RFID Bracket
Scan Handle
Rubber Boot
Wrist Strap
Hand Strap
Screen Film
Power Adapters
UNIVERSAL ACCESSORIES
EDA52 Non-booted Net Base: Charges four terminals simultaneously with ethernet communication
EDA52 Non-booted Ethernet Base: Charges one terminal and one battery simultaneously with ethernet communication
EDA52 Non-booted Display Dock: Charges one terminal with external display and ethernet communication USB Cup
Universal Cup: Be compatible with CT4X universal docks
