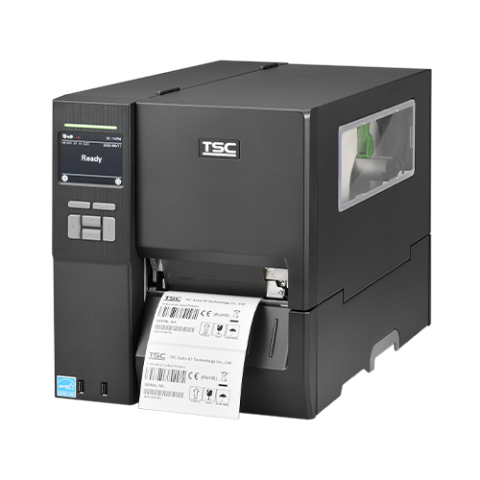

TSC MH Series Industrial Printer – MH241/341/641

The MH241 Series is TSC’s mainstream industrial barcode label printer built upon the legacy of the MH240 Series. It brings new features to those looking for solutions to address evolving business challenges from growing production line demands to increasing operational complexities. This series offers print resolution at 203 dpi and print speeds up to 14 ips, 300 dpi resolution at print speeds up to 12 ips, and 600 dpi resolution which makes it ideal for printing very small 2D barcodes, graphics, fine print, and other ultra-high-resolution images.  Color touch screen is an great option which provides color GUI display with ease of operation.

Add to Enquiry
Download PDF
Specification
Printer Specification
Memory

512 MB Flash memory
256 MB SDRAM
microSD Flash memory card reader for Flash memory expansion, up to 32 GB
Sensors • Gap transmissive sensor (position adjustable)
• Black mark reflective sensor (Bottom or Top black mark sensor switchable and position adjustable)
• Head open sensor
• Ribbon encoder sensor
• Ribbon end sensor
Processor 32-bit RISC CPU
Interface • RS-232
• USB 2.0 (High speed mode)
• Internal Ethernet, 10/100 Mbps
• USB host *2 (Front side), for scanner or PC keyboard
• GPIO (DB15F) + Centronics (factory option)
• Internal Bluetooth 5.0 MFi (factory option)
• Slot-in 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (dealer option)
Power Internal switching power supply
• Input: AC 100-240V, 4-2A, 50-60Hz
• Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W
LCD display/ Operation buttons • 6 operation buttons
• 1 LED (with 2 LEDs Green & Red)
• 3.5” color display, 320 x 240 pixel
Printer language TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
Environment condition • Operation: 0 ~ 40˚C (32 ~ 104˚F), 25~ 85% non-condensing
• Storage: -40 ~ 60 ˚C (-40 ~ 140˚F), 10~ 90% non-condensing
Real time clock & Buzzer Standard

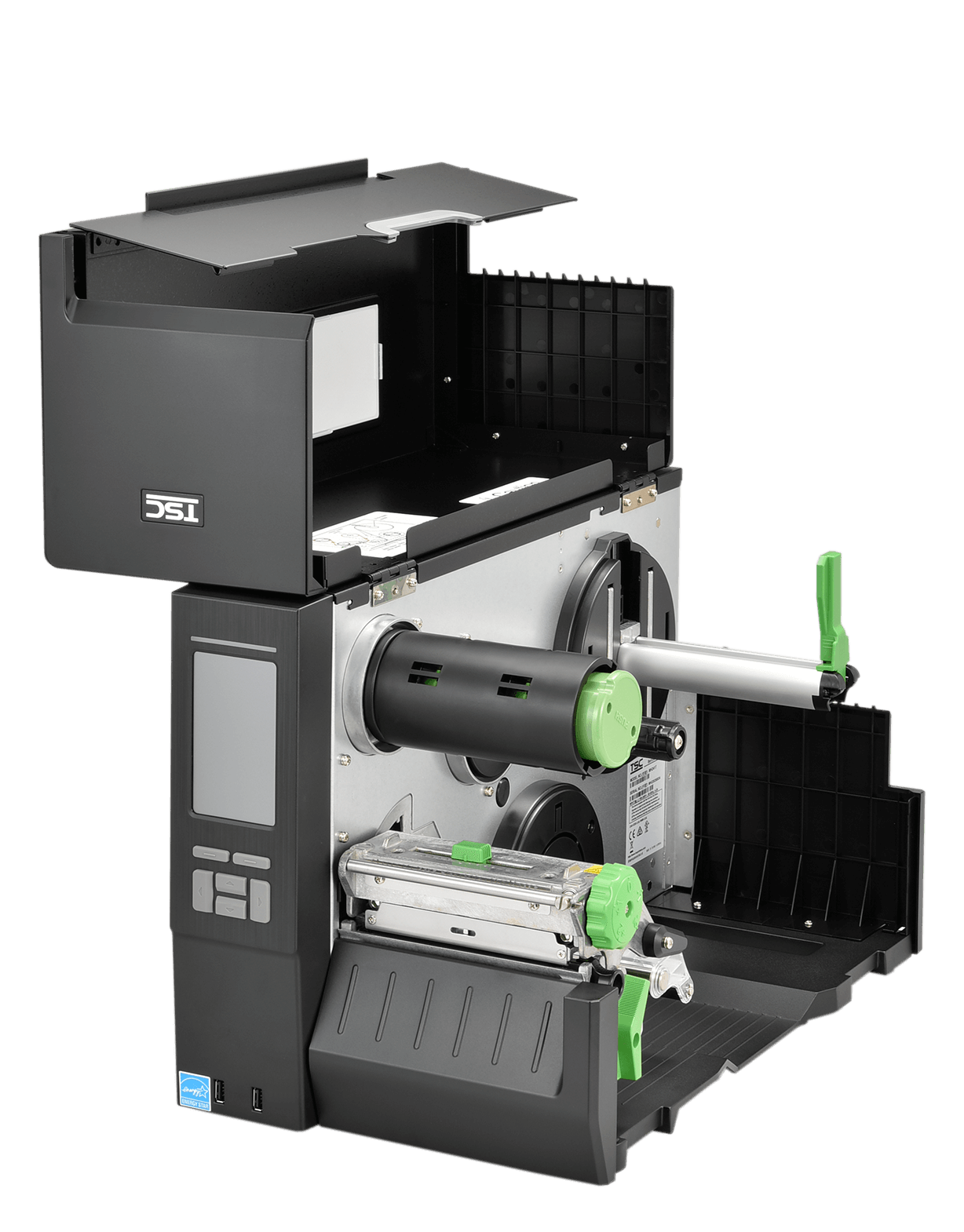

Enclosure Die-cast print mechanism and base with bi-fold metal cover with large clear media view window
Physical dimension 276 mm (W) x 326 mm (H) x 502 mm (D)
10.87” (W) x 12.83” (H) x 19.76” (D)
Printing Specification
  MH241 MH341 MH641
Resolution 8 dots/mm (203 DPI) 12 dots/mm (300 DPI) 24 dots/mm (600 DPI)
Printing method Thermal Transfer & Direct Thermal
Max. print speed 356 mm (14”)/second 305 mm (12”)/second 152 mm (6”)/second
Max Print Width 104 mm (4.09”)
Max. print length 25,400 mm (1,000“) 11,430 mm (450”) 2,540 mm (100”)
Media and Ribbon Characteristics
Media Type Continuous, die-cut, black mark (Bottom side or top side black mark), fan-fold, notch, perforated, tag, care label (outside wound)
Media width 20 ~ 114 mm (0.79″ ~ 4.5″)
Media thickness 0.06 ~ 0.28 mm (2.36 ~ 28 mil)
Media core diameter 38.1 ~ 76.2 mm (1.5” ~ 3”)
Label length 5 ~ 11,430 mm (0.20” ~ 450”)
Label roll capacity 203.2 mm (8”) OD
Ribbon 600 m long, max. O.D. 90 mm, 1” core (ink coated outside or inside)
Ribbon width 25.4 mm ~ 114.3 mm (1” ~ 4.5”)
Options and Accessories
Accessories • Windows labeling software CD disk
• Quick start guide
• USB cable
• Power cord
Dealer options • Regular cutter (full cut guillotine cutter)
• Heavy-duty cutter (full cut guillotine cutter)
• Care label cutter
• 1” I.D. core media spindle
• 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (including slot-in housing) *
• Peel-off kit
• Internal rewinder kit (5” O.D.)
Factory options • GPIO (DB15F) + Parallel interface
• Internal Bluetooth 5.0 MFi*
User options • Basic cutter tray
• Advanced cutter tray
• Universal cutter tray
• KP-200 Plus keyboard display unit
