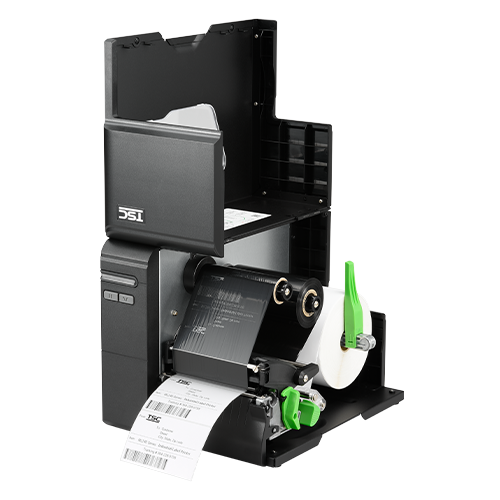

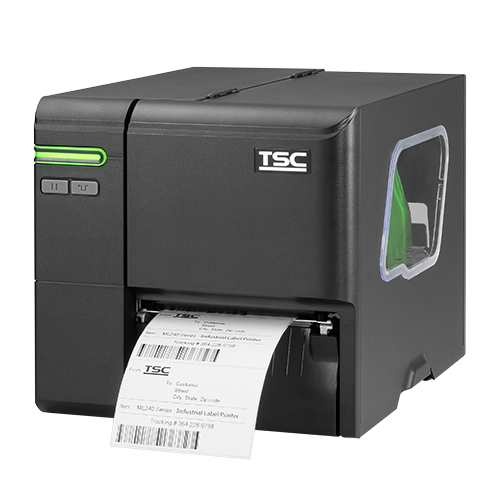

TSC ML Series Performance Printer – ML241P/341P

The ML Series industrial label printers are known for their small footprint and effortless operations. Its intuitive design simplifies the user experience, allowing for easy adjustment of the thermal printhead (TPH) pressure and ribbon tension balance, ensuring optimal printing quality. Toolless TPH and platen roller removal expedite maintenance, while TSC Sense Care prevents operational downtime with self-diagnostic features.

The ML241P Series industrial label printers feature a small footprint with a large capacity. Its compact size makes it suitable for applications with height limitations, such as rack-mount applications. By supporting larger label rolls up to 8-inch O.D., it can handle high-volume printing, increasing operational uptime.

Additionally, the ML241P Series eco-friendly printers boast 100% recyclable packaging and printer casing, with over 90% recyclable components, minimizing its environmental impact.

Add to Enquiry
Download PDF
Specification
Printer Specification
Memory • 128 MB Flash memory
• 64 MB SDRAM
Sensors • Gap transmissive sensor (position adjustable)
• Black mark reflective sensor (position adjustable)
• Head open sensor
• Ribbon end sensor
Processor 32-bit RISC CPU
Interface • RS-232
• USB 2.0
• Internal Ethernet, 10/100 Mbps
• USB host, for scanner or PC keyboard
• Internal Bluetooth 4.2 (dealer option)
• Slot-in 802.11 a/b/g/n wireless (dealer option)
LCD display/ Operation buttons • 2.3” color LCD
• 1 status indicator
• 6 buttons (Menu, Pause/Feed, Up, Down, Left, Right)
Printer language TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
Environment condition • Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
• Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Real time clock Standard
Enclosure Die-cast print mechanism/Metal cover with large media window
Physical dimension 248 mm (W) x 245 mm (H) x 330 mm (D)
9.76” (W) x 9.65” (H) x 12.99” (D)
Printing Specification
  ML241P ML341P
Printing Method Direct Thermal & Thermal Transfer
Resolution 8 dots/mm (203 DPI) 12 dots/mm (300 DPI)
Max. Print Speed 204 mm (8”)/second 152 mm (6”)/second
Max. Print Width 108 mm (4.25″) 105.7 mm (4.16″)
Max. Print Length 25400 mm (1000”) 1,1430 mm (450”)
Media and Ribbon Characteristics
  ML241P ML341P
Media Type Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media thickness 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Media core diameter 25.4 mm or 38.1 mm (1” or 1.5”)
Media width 20 ~ 118 mm (0.8” ~ 4.7”) 20 ~ 114.3 (0.79” ~ 4.5”) for peel or cutter mode
Label length 5 ~ 2,794 mm (0.2” ~ 110”) 5 ~ 1,016 mm (0.2” ~ 40”)
Label roll capacity 139.7 mm (5.5“) O.D., 1” or 1.5” I.D core
Ribbon 450 m long, max. O.D. 81.3 mm, 1“ core (ink coated outside or inside)
Ribbon width 40 mm ~ 110 mm (1.6” ~ 4.3”)
Options and Accessories
Accessories • Windows labeling software CD disk
• Quick start guide
• USB cable
• Power cord
Dealer options • Peel-off kit
• Regular cutter (full cut guillotine cutter)
• Internal Bluetooth 4.2
• 802.11 a/b/g/n wireless module (for device without slot-in housing)*
User options • KP-200 Plus keyboard display unit
• 802.11 a/b/g/n wireless module (for device with slot-in housing)
