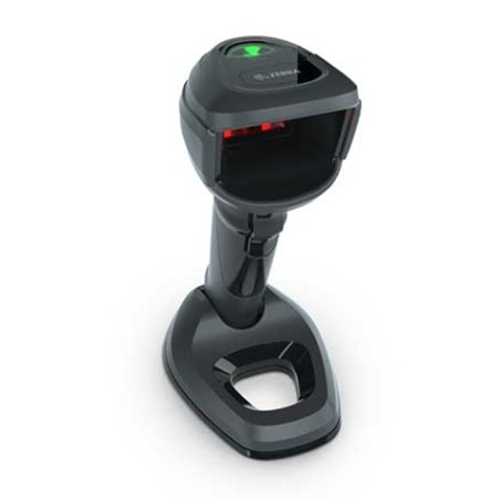

Zebra DS 9908/9908R 2D Corded Hybrid Imager

The point of sale is your last opportunity to make a good impression. With the DS9900 Series, you can give shoppers the checkout experience they expect — short lines, a speedy transaction and attentive service. A one-of-a-kind hybrid design provides maximum flexibility, offering both handheld and hands-free scanning. While other products are handheld scanners retrofitted with a base, Zebra’s award-winning Industrial Design team created the DS9900 Series from the ground up for both handheld and hands-free use. You get Zebra’s industry-leading scanning technology, seamless switching between modes and superior ease of use, along with a wide range of innovative features that boost productivity. An RFID model combines a barcode scanner and RFID reader to extend the benefits of RFID to your point of sale. Empower your checkout stands with the DS9900 Series Hybrid Presentation Imager — the ultimate in performance and design.

Download PDF
Specification
Physical Characteristics
Dimensions: DS9908: 8.0 in. H x 3.7 in. W x 5.2 in. D
20.3 cm H x 9.4 cm W x 13.2 cm D
DS9908R: 8.0 in. H x 3.9 in. W x 5.75 in. D
20.3 cm H x 9.9 cm W x 14.6 cm D
Weight: DS9908: 11.6 oz./330.0 g
DS9908R: 14.8 oz./420.0 g
Voltage and current: 4.5 to 5.5 VDC Host Powered;
4.5 to 5.5 VDC External Power Supply

Operating current at nominal voltage (5.0V):
DS9908: 321 mA (typical)
DS9908R: 400 mA (typical)
Standby current (idle) at nominal voltage (5.0V):
DS9908: 70 mA (typical)
DS9908R: 135 mA (typical)

Color: Midnight Black
Supported Host Interfaces: USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Keyboard Support: Supports over 90 international keyboards
Electronic Article Surveillance: Compatible with Checkpoint EAS deactivation system
User Indicators: Direct Decode Indicator, Good Decode LEDs, Speaker (adjustable tone and volume)
Performance Characteristics
Light Source Aiming Pattern: Circular 617nm Amber LED
Imager Field of View 48° H x 30.6° V Nominal
Roll 0° – 360°
Pitch +/- 60°
Skew +/- 60°
Print contrast: 16% minimum reflective difference

Swipe Speed
(Hands- Free)

Up to 240 in./610 cm per second for 13 mil UPC in optimized mode
Environmental
Operating temp. 32.0° to 122.0° F / 0.0° to 50.0° C
Storage Temperature -40.0° to 158.0° F / -40.0° to 70.0° C
Humidity 5% to 95% RH, non-condensing
Drop specs DS9908: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
DS9908R: Designed to withstand multiple drops at 4.0 ft./1.2 m to concrete
Tumble Specification Designed to withstand 2,000 tumbles in 1.5 ft. /0.5 m tumbler3
Environmental Sealing DS9908: IP52 DS9908R: IP42
Electrostatic Discharge (ESD) ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
Ambient Light
Immunity
0 to 10,000 Foot Candles / 0 to 107,600 Lux
