Zebra

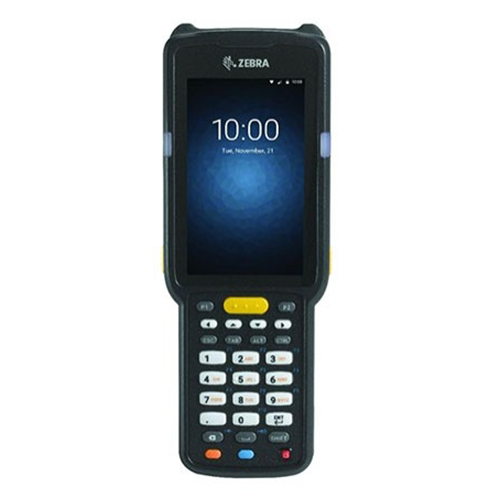

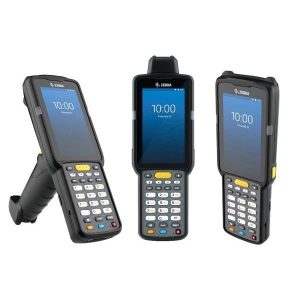

Zebra MC3300 Mobile Computer

The MC3300 makes it easy to migrate to the next generation in mobility business platforms — Android. The same operating system that took the consumer world by storm is now ready for business, providing a well proven mobility platform and guaranteed security support you can count on. This next generation of the highly successful MC3000 series offers everything you need to run your business today and tomorrow. You can run current terminal emulation (TE) applications right out of the box — or reformat to create intuitive screens that utilize touch to simplify the user experience. Our unique toolbox of powerful applications — known as Zebra’s Mobility DNA — not only makes deployment and application development easier than ever, it also allows you to add new capabilities to your MC3300 mobile computers to streamline everyday processes and improve worker productivity. When it comes to features and options, this best-in-class device delivers, offering a light weight ergonomic design, large touchscreen, a variety of keypad options, unmatched scanning performance and much more. And with its multiple form factors, the MC3300 gives you unmatched versatility and flexibility from the warehouse to the retail store. The MC3300 — the easy way to power your business with advanced Android mobile computing.

Download PDF
Specification
Physical Characteristics
Dimensions: Straight Shooter:
7.96 in. L x 2.94 in. W x 1.35 in. D
202.2 mm L x 74.7 mm W x 34.5 mm D
Rotating Turret:
8.79 in. L x 2.94 in. W x 1.35 in. D
223.4 mm L x 74.7 mm W x 34.5 mm D
Gun:
7.96 in. L x 2.94 in. W x 6.45 in. D
202.6 mm L x 74.7 mm W x 163.9 mm D
Weight (including
strap, stylus, and battery):
Straight Shooter: 13.2 oz./375 g
Rotating Turret: 13.3 oz./377 g
Gun: 17.8 oz./505 g
Scan: 13.5 oz./382 g
Display: 4.0 inch capacitive; WVGA; color
Touch Panel: Corning® Gorilla® Glass touch panel with air gap
Backlight: LED Backlight
Keypad Options: Numeric (29 Key), Function Numeric (38 Key), Alpha Numeric (47 Key)
Expansion Slot: Micro SD card slot, up to 32GB
Notifications: Side LEDs and audible tone
Audio: Speaker
Performance Characteristics
CPU Qualcomm APQ8056 1.8 GHz hexa-core 64 bit with power optimization
Operating System Android 8.1 (Oreo) – AOSP & GMS
Memory 2GB/16GB Standard;
4GB/16GB Premium;
4GB/32GB Premium Plus
Power MC3300 Straight Shooter (45° Scan and 0° Scan)/ and Turret (Rotating Head): Rechargeable Li-Ion: standard 2740 mAh; High capacity 5200 mAh; Fast charging support (new accessories)
MC3300 Gun/Pistol: Rechargeable Li-Ion: high capacity 5200 mAh; Fast charging support (new accessories)
User Environment
Operating temp. -20° C to +50° C
Storage Temp. -40° C to +70° C
Humidity 5% to 95% RH (Non-condensing)
Sealing IP54
Drop specs Multiple 5 ft./1.5 m drops to concrete over the entire operating temperature range
Tumble Specs 1,000 3.2 ft./1 m tumbles
ESD +/-15kV air, +/8kV contact discharge
Communications
Radio 802.11 a/b/g/n/ac/d/h/i/k/r/w
Security and Encryption WEP, WPA/WPA2 PSK , WPA/WPA2
Enterprise
Certifications 802.11n/ac, WMM-PS, WMM-AC, PMF, Voice
Enterprise, Wi-Fi Direct, WPS
Data Rates 2.4GHz: 144Mbps
5GHz: 867Mbps
Operating Channels 2.4GHz: 1 to 13
5GHz: 36,40,44,48,52,56,60,64, 100,104, 108,112,116,120,124,128,132,136,140,(144),149, 153,157,161,165
Bluetooth V4.1, V2.1 + EDR w/ Bluetooth Low Energy (BLE)
