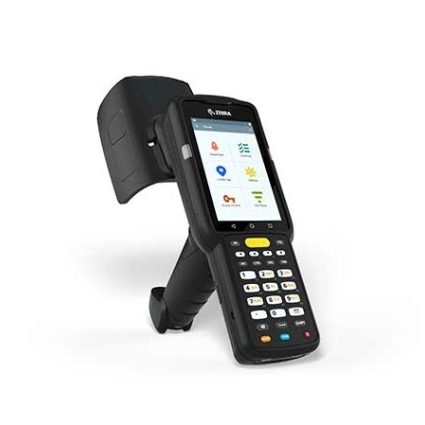

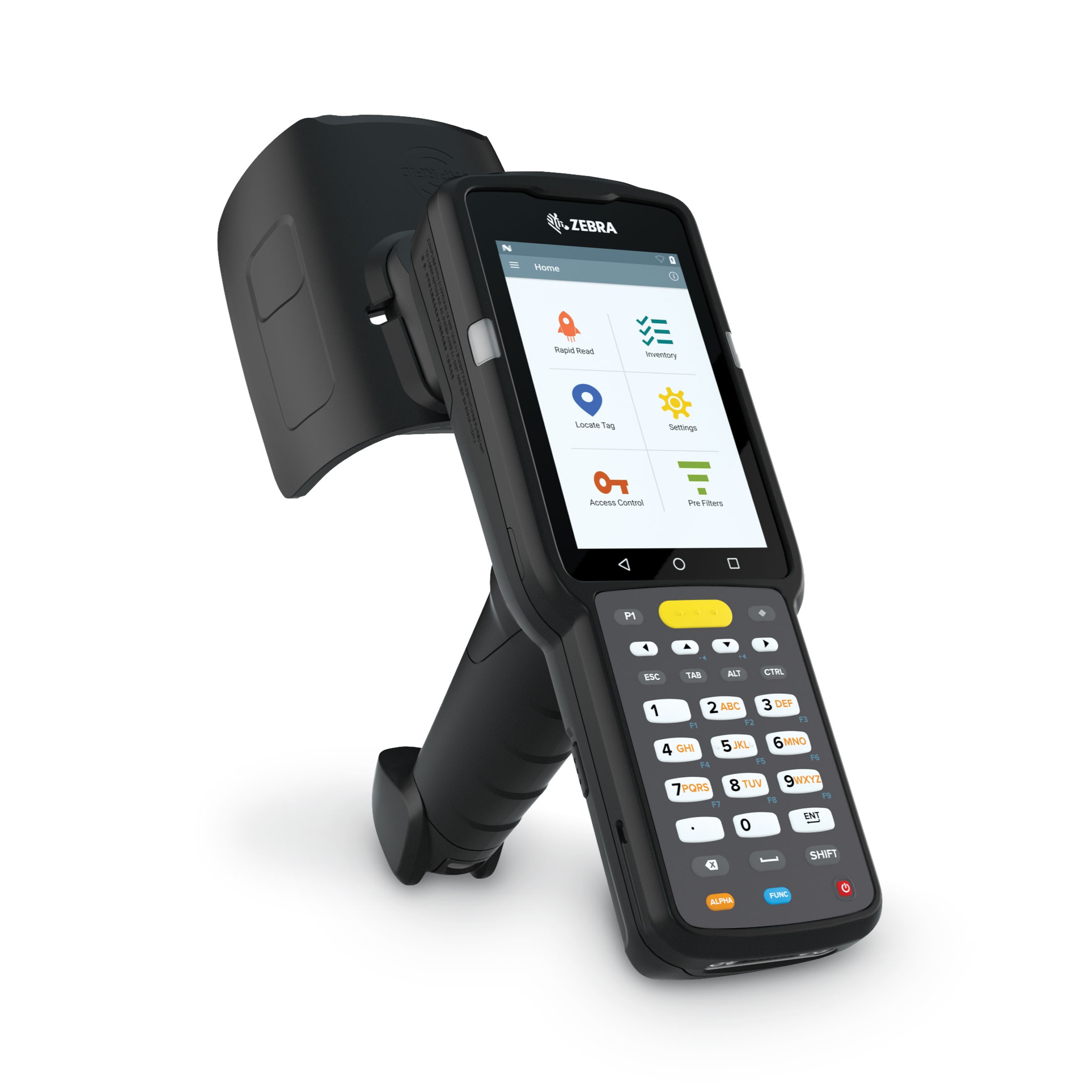

Zebra MC3390XR Long Range UHF RFID Reader

MC3390xR integrated long-range handheld UHF/RAIN RFID reader brings a new level of efficiency and accuracy to inventory management, order fulfillment, cross-docking and more. You get the same proven lightweight ergonomic design of the successful MC3300R family, now with Zebra’s latest, most powerful and secure Android architecture. The ultra-powerful processor, integrated NFC reader and 35% larger capacity battery boost task speed and ease of use. The integrated long-range antenna delivers best-in-class RFID read range and higher throughput, so inventory counts can be accomplished more quickly and accurately.

Add to Enquiry
Download PDF
Specification
Physical Characteristics
Dimensions 6.45 in. L x 3.78 in. W x 10.67 in. D
164 mm L x 96 mm W x 271 mm D
Weight (with handstrap) MC3390xR with SE4770: 26.2 oz./743 g
MC3390xR with SE4850: 27.1 oz./769 g
Display 4-inch (800 x 480) WVGA; color display
Imager Window Corning Gorilla Glass
Touchpanel Corning Gorilla Glass touch panel with air gap; supports dual input mode with finger, gloved finger and stylus (conductive stylus sold separately)
Backlight LED backlight
Expansion Slot User accessible MicroSD with 32 GB SDHC and up to 512 GB SDXC
Network Connections USB 2.0 High Speed (host and client), WLAN and Bluetooth
Notification Side LEDs and audible tone
Keypad Numeric (29 key), Function Numeric (38 key), Alpha Numeric (47 key)
Voice PTT Express and Workforce Connect PTT Pro (Internal speaker, microphone and Bluetooth wireless headset support)
Audio Built-in speaker and microphone
Performance Characteristics
CPU Qualcomm SnapdragonTM 660 octa-core 2.2 GHz
Operating System Android 11; upgradeable to Android 14
Memory 4GB/32GB Flash
Power All models ship with rechargeable Li-Ion, 3.6V, 7000mAh PowerPrecision+ battery; full charge under five (5) hours; hot swap support with temporary WLAN/Bluetooth session persistence
Backwards compatibility with 5200mAh (2X) batteries
Scan Engines SE4770 with LED Aimer
SE4850 Extended Range Imager
User Environment
Operating Temp. -4° F to 122° F/-20° C to 50° C
Storage Temp. -40°F to 158°F/-40°C to 70°C
Humidity 5% to 95% RH (Non-condensing)
Drop Specifications Multiple 5 ft./1.5 m drops to concrete over the entire operating temperature range
Tumble Specification 1,000 1.6 ft./0.5 m tumbles
Sealing IP54
Vibration Sine: 4g’s peak, 5hz to 2khz,
Random: .04g²/hz, 20hz to 2khz
Thermal Shock 40° F to 158° F/-40° C to 70° C
Electrostatic Discharge (ESD) +/- 15kV air, +/-8kV contact discharge
+/-8kV indirect contact discharge
RFID
Standards Supported EPC Class 1 Gen2; EPC Gen2 V2; ISO-18000-63
RFID Engine Zebra Proprietary Radio Technology
Fastest Read Rate 900+ tags/sec
Nominal Read Range ~60+ ft./~18.2+ m
RFID Power Output 0 dBm to +30 dBm
RFID Antenna Type Integrated Linear Polarized
Frequency Range 865-928MHz
*Specific regional and country settings supported upon country selection
Connectivity
Radio IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v2/w/mc2; Wi-Fi™ certified; IPv4, IPv6, 2×2 MU-MIMO
Data Rates 5GHz: 802.11a/n/ac — up to 866.7 Mbps
2.4GHz: 802.11b/g/n — up to 300 Mbps
Operating Channels (depending on Regulatory) Channel 1-13 (2412-2472 MHz): 1,2,3,4,5,6,7,8,9,10,11,12,13
Channel 36-165 (5180-5825 MHz): 36,40,44,48,52 56,60,64,100,104,108,112,116,120,124,128,132,136,140,144,149,153,157,161,165
Channel Bandwidth: 20, 40, 80 MHz
Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency
Security and Encryption WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA3 Enterprise 192-bit Mode (GCMP-256) — EAP-TLS; Enhanced Open (OWE)
Certifications WFA (802.11n, WMM-PS, 801.11ac, PMF); WiFi Direct WMM-AC, Voice Enterprise
Fast Roam PMKID caching; Cisco CCKM; 802.11r; OKC
Bluetooth Class 2, Bluetooth v5.0 with BR/EDR and Bluetooth Low Energy (BLE) Support
