Zebra

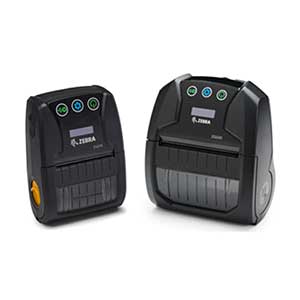

Zebra ZQ200 Series Mobile Printer – ZQ210/220

ZQ200 Series, offering the perfect balance of cost, quality, versatility, durability, ‘wearability’ and ease-of-use. When it comes to versatility, this printer outshines the competition, allowing you to print multiple types of media and media widths to meet all your printing needs, today and in the future. All the right connectivity options ensure split second pairing with a host mobile device, while USB charging makes it easy to keep the ZQ200 Series charged at home, in the car, on the e-bike or in the office. With its slim and lightweight design, it’s easy to carry all day. When it comes to ease-of-use, with the integrated display, removable battery, one-handed operation and more, nobody does it better. You get the durability to enable mobile printing indoors or outside in the heat, cold, rain and snow. And with Zebra’s 50 years of experience and innovation, you get quality you can count on. The ZQ200 Series the high-quality value-priced mobile printer.

Download PDF
Specification
Printer Specification
Programming Languages CPCL and ESC-POS languge
Resolution 203 dpi/8 dots per mm
Memory 16MB SDRAM, 16MB Flash
Maximum Print
Width
ZQ220: 72 mm/2.83 in.
ZQ210: 48 mm/1.89 in.
Maximum Print
Speed
ZQ220: 2.5 ips (60 mm/s)
ZQ210: Receipt and Label: 2.5 ips (60 mm/s)
Linerless: 2 ips (50 mm/s)
Sensors Black Mark, Gap, Media Out sensing
Battery Capacity and Type ZQ220: 2550 mAh (7.4V), rechargeable Li-ion battery
ZQ210: 1500 mAh (7.4V), built-in rechargeable Li-ion battery
Media Characteristics
Media Type Direct Thermal media, continuous receipt, black mark receipt, and gap label, option for linerless label
Media Width ZQ220:
80 mm/3.15 in.
76.2 mm/3.00 in.
58 mm/2.28 in.
50.8 mm/2.00 in.
ZQ210:
58 mm/2.28 in.
50.8 mm/2.00 in.
40 mm/1.57 in.
30 mm/1.18 in.
Media Roll Diameter
Roll
ZQ220:
• Inner: 12.7 mm/0.5 in.
• Outer: 50 mm/2.0 in.
ZQ210:
• Inner: 12.7 mm/0.5 in.
• Outer: 40 mm/1.57 in.
Media Thickness 0.05334 mm/0.0021 in.
Minimum Label/Receipt Length 12.5/0.49 in.
Maximum Label/Receipt Length Unconstrained in line print mode
Operating Characteristics
Environmental Operating Temperature: -10°C to 50°C/14°F to 122°F
Storage Temperature: -20°C to 60°C/-4°F to 144°F
Charging Temperature: -0°C to 40°C/32°F to 104°F
Charging Time: 3.5 Hours (23 °C +/- 5°C)
Printing Length per
Charge
Minimum of 500 labels x 8.5 in. length, 13% density
Printhead Reliability 50KM abrasion resistance (scratch failure mode by
foreign particle is excluded)
Drop Specification 1.5 m/5 ft. to concrete

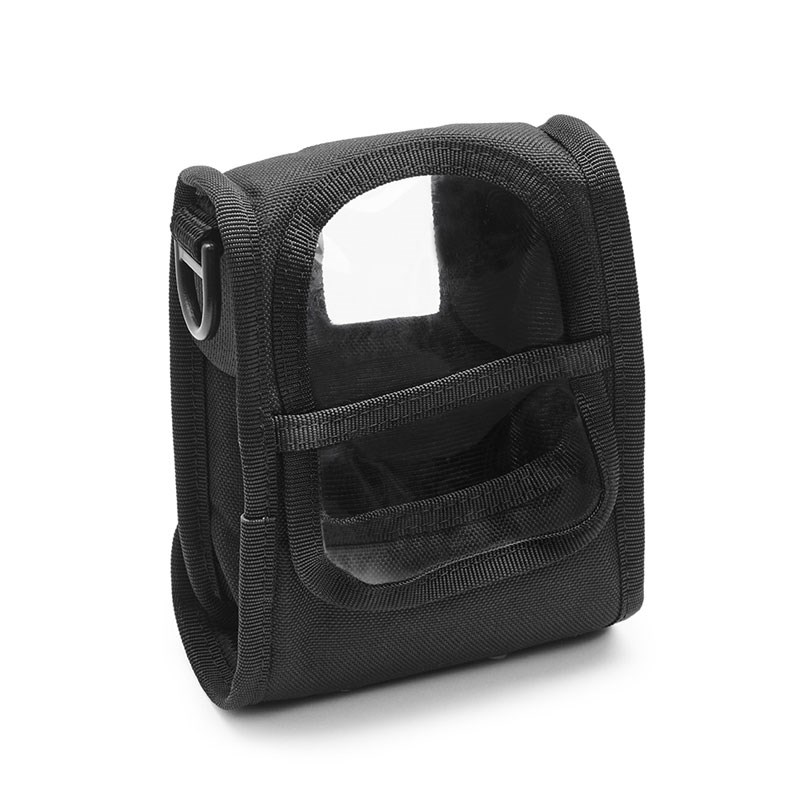

IP Rating IP43 (IP54 with case)
Agency Approvals Emissions: EN55032, ETSI EN 301 489 -1 / -17
Susceptibility: EN55035, ETSI EN 301 489 -1 / -17
Safety: EN60950, EN62368
Physical Characteristics
Dimensions ZQ220: 129.5 mm L x 114.5 mm W x 56.7 mm H
5.0 in. L x 4.5 in. W x 2.2 in. H
ZQ210: 118 mm L x 85.5 mm W x 44.5 mm H
4.65 in. L x 3.35 in. W x 1.75 in. H
Weight ZQ220: 420 g/0.92 lbs
ZQ210: 265 g/0.58 lbs
Communication and Interface
Bluetooth Bluetooth 2.1+EDR/4.1 Low Energy dual mode
USB Port USB 2.0 type-C connector
NFC Tag Passive NFC tag
Charging Method USB and/or docking charging
Low Power Mode Support power saving
MFi (iOS support via Bluetooth) MFI -Certified
User Interface OLED Screen, Control Buttons (Power, Config, Feed)
